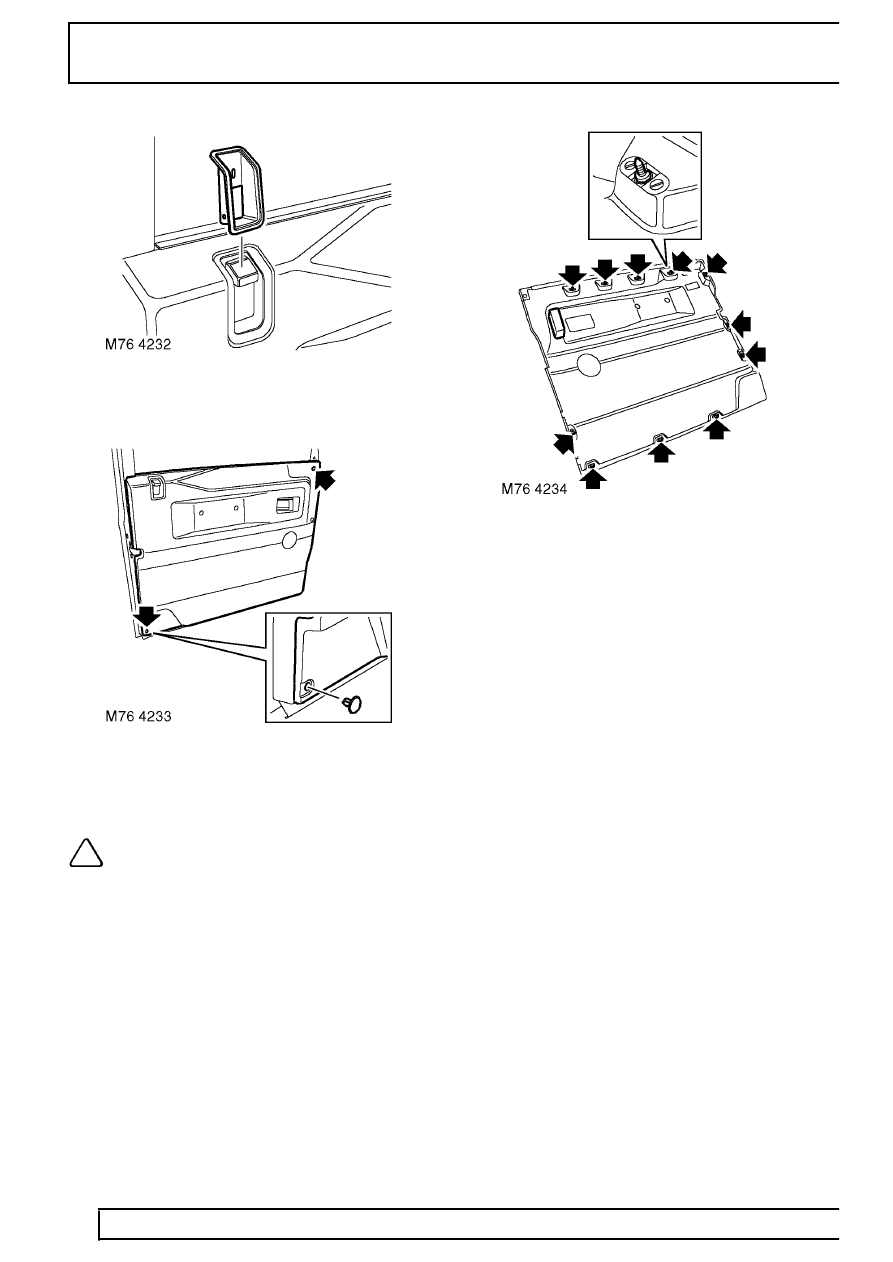

3. Remove sill button guide.
4. Remove 2 studs securing trim casing.
5. Using a trim removal tool, release 11 fasteners
and remove trim casing.
NOTE: Do not carry out further
dismantling if component is removed for
access only.
6. Remove fasteners and anti-vibration pad from
trim casing
Refit
7. Fit anti-vibration pad and fasteners to trim
casing.
8. Position trim casing, align fasteners with holes in
door and press firmly into position.
9. Fit trim studs to casing.
10. Fit sill button guide.

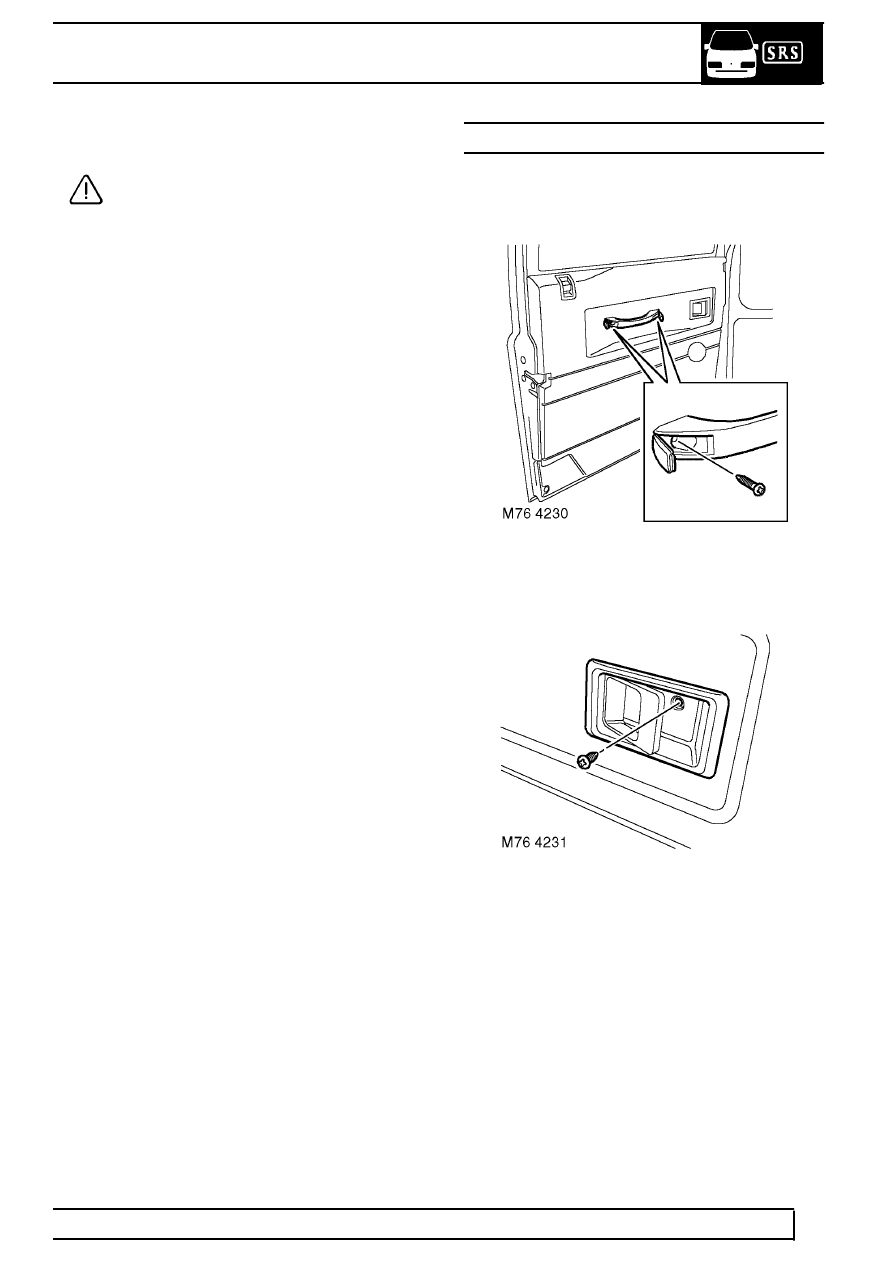

11. Fit escutcheon to door handle and secure with
screw.
12. Fit door pull and secure with screws.
