TD5 Defender
86
ELECTRICAL
10
REPAIR

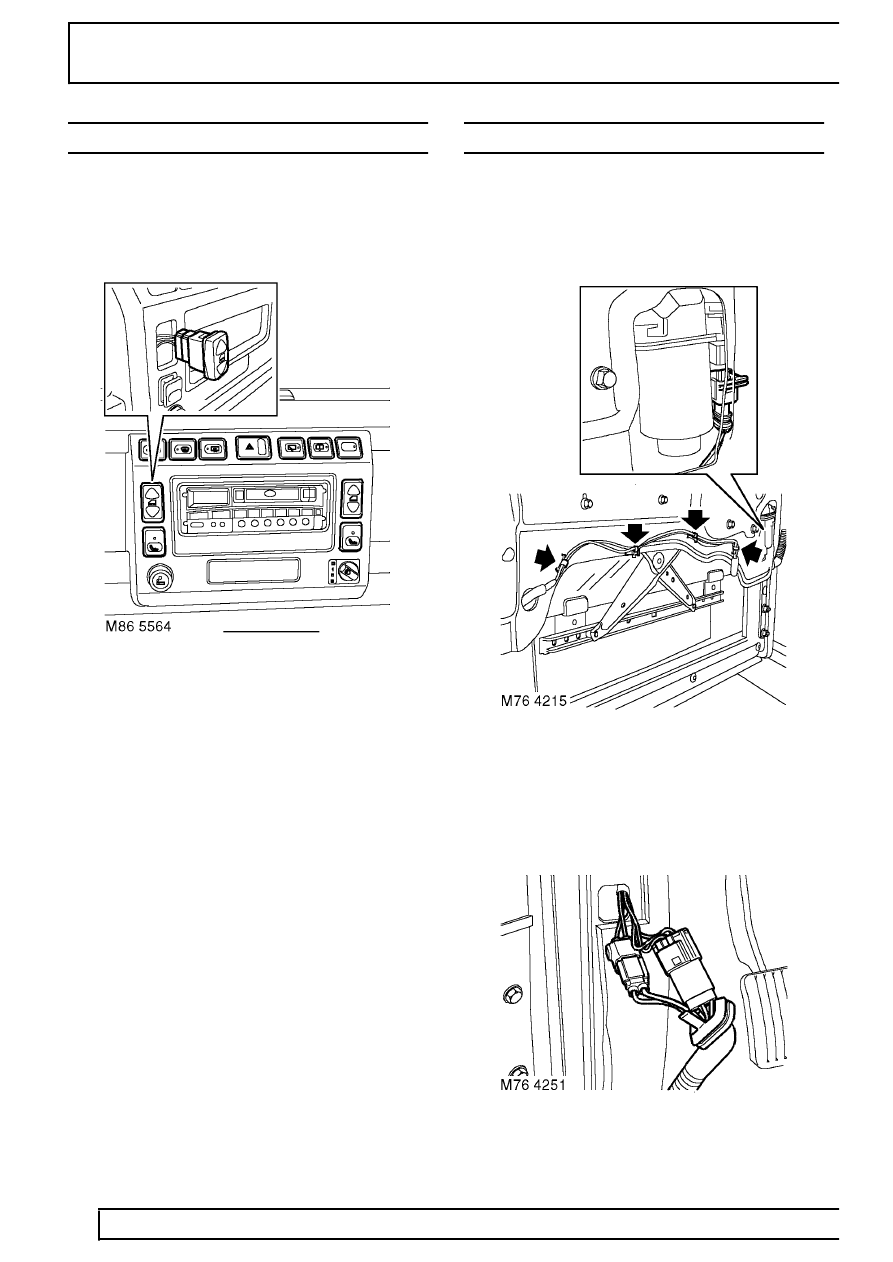

SWITCH - FASCIA - FROM 02MY
Service repair no - 86.25.18
Remove
1. Remove radio. See this Section.
2. Release switch, disconnect multiplug and
remove switch.
Refit
3. Connect multiplug to switch and fit switch to
panel.
4. Fit radio. See this Section.
HARNESS - FRONT DOOR - FROM 02MY
Service repair no - 86.25.20
Remove
1. Remove door lock solenoid. See this Section.
2. Carefully peel back section of plastic sheet for
access to harness.
3. Release clips securing harness to panel.
4. Disconnect multiplug from motor.
5. Release harness sleeve and withdraw harness
from door.
6. Release harness sleeve and withdraw harness
multiplugs from ’A’ post.
7. Disconnect 2 multiplugs and remove harness.
