TD5 Defender
ELECTRICAL
11
REPAIR
Refit
8. Position harness and connect multiplugs.
9. Feed multiplugs into ’A’ post and secure harness
sleeve.
10. Connect multiplug to motor.
11. Secure harness clips and sleeve.
12. Secure plastic sheet.
13. Fit door lock solenoid. See this Section.

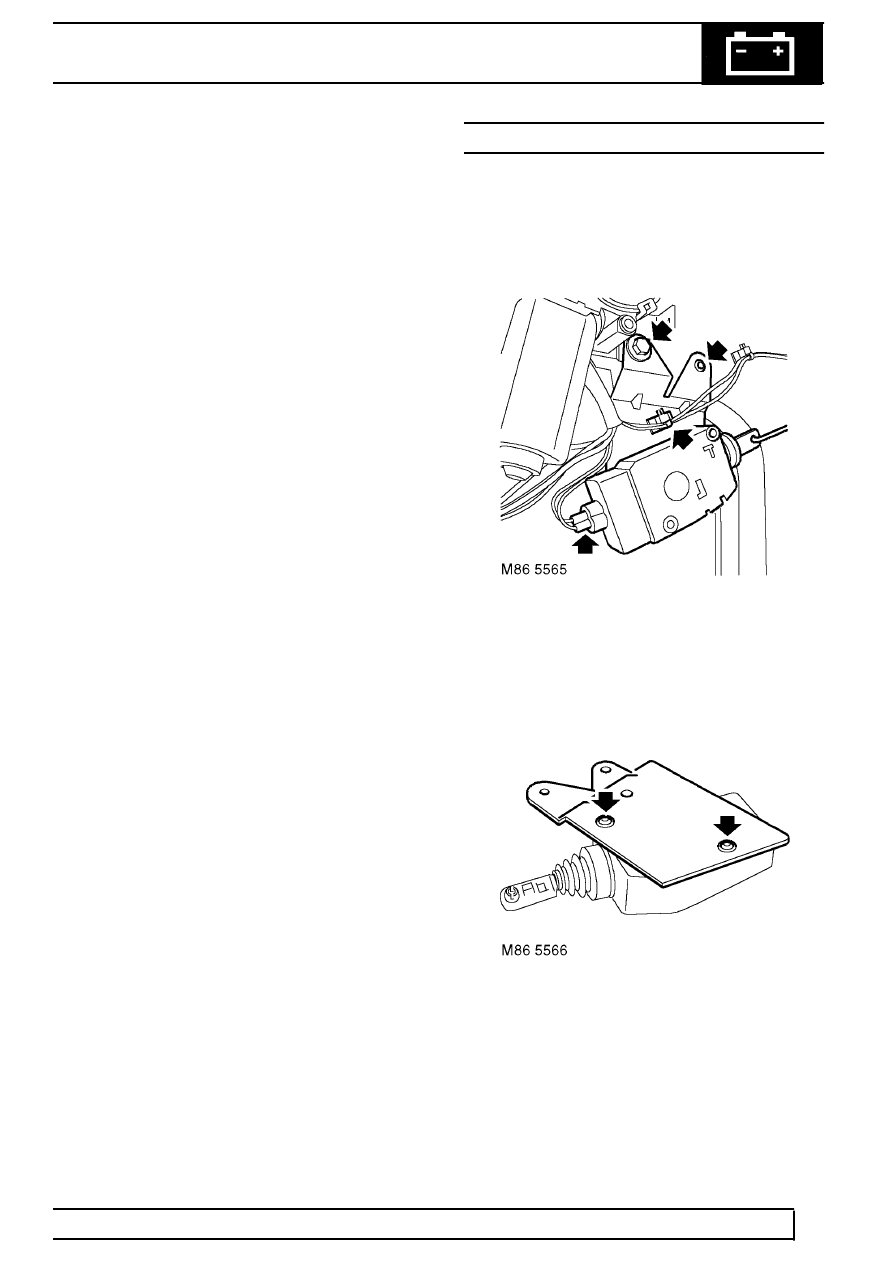

SOLENOID/MOTOR - TAIL DOOR - FROM 02MY
Service repair no - 86.26.02
Remove
1. Remove tail door trim casing. See CHASSIS
AND BODY, Repair.
2. Disconnect multiplug from solenoid.
3. Remove bolt and screw securing solenoid to
door.
4. Release clip securing harness to solenoid
mounting bracket.
5. Remove solenoid assembly from operating rod.
6. Remove 2 screws securing solenoid to mounting
bracket.
