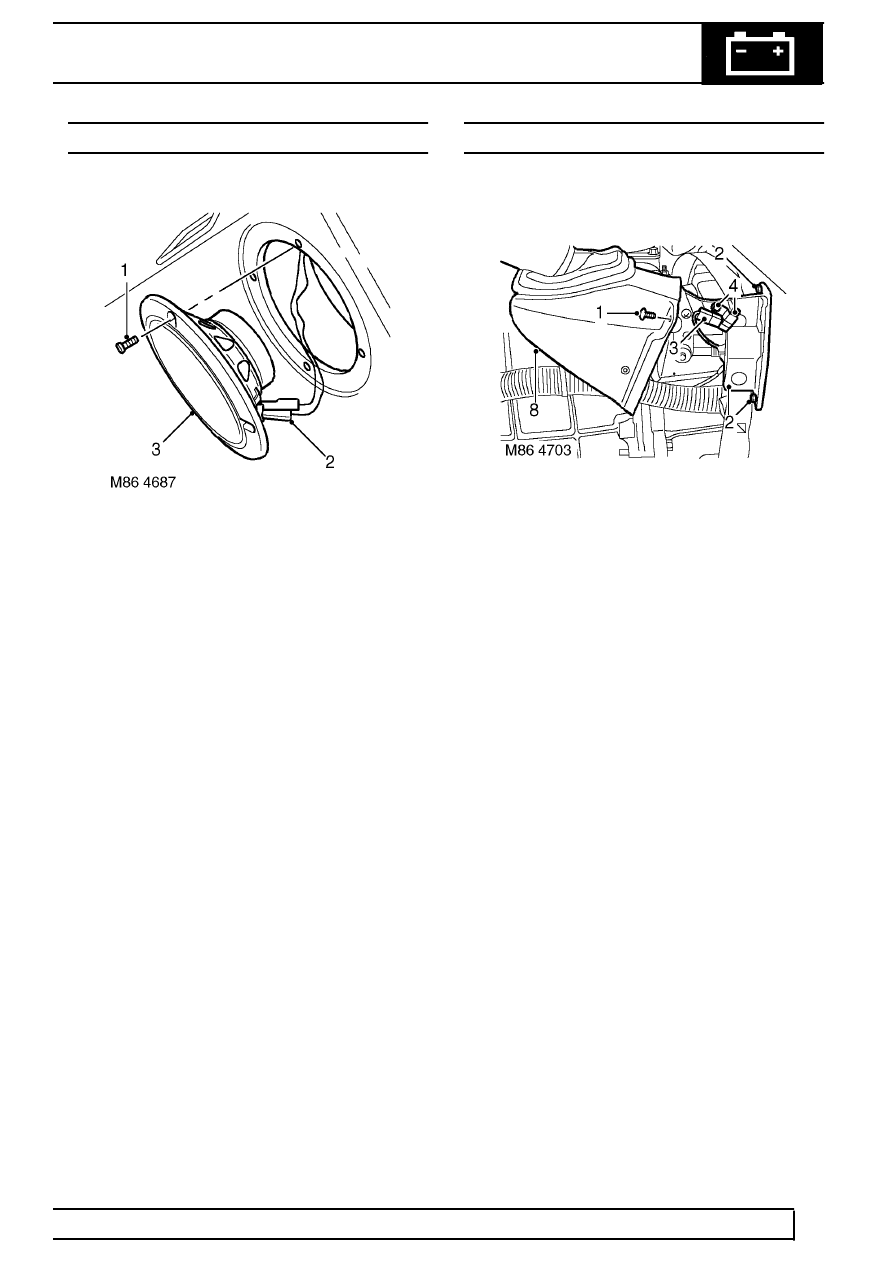

SPEAKER - FRONT
Service repair no - 86.50.15
Remove
1. Remove 4 screws securing speaker to fascia.
2. Release speaker from fascia and disconnect 2
Lucars.
3. Remove speaker.
Refit
4. Position speaker to fascia and connect Lucars.
5. Fit speaker to fascia and secure with screws.
SWITCH - TRANSMISSION BRAKE
Service repair no - 86.65.45
Remove
1. Release cover from transmission brake lever.
2. Remove 2 bolts and release transmission brake
lever from body.
3. Disconnect Lucar from transmission brake
warning switch.
4. Remove 2 screws securing switch from brake
lever and remove switch.
Refit
5. Fit switch to brake lever and tighten screws.
6. Connect switch Lucar.
7. Position brake lever and tighten bolts to 22 Nm
(16 lbf.ft).
8. Position cover to brake lever.
