TD5 Defender
ELECTRICAL
15
REPAIR

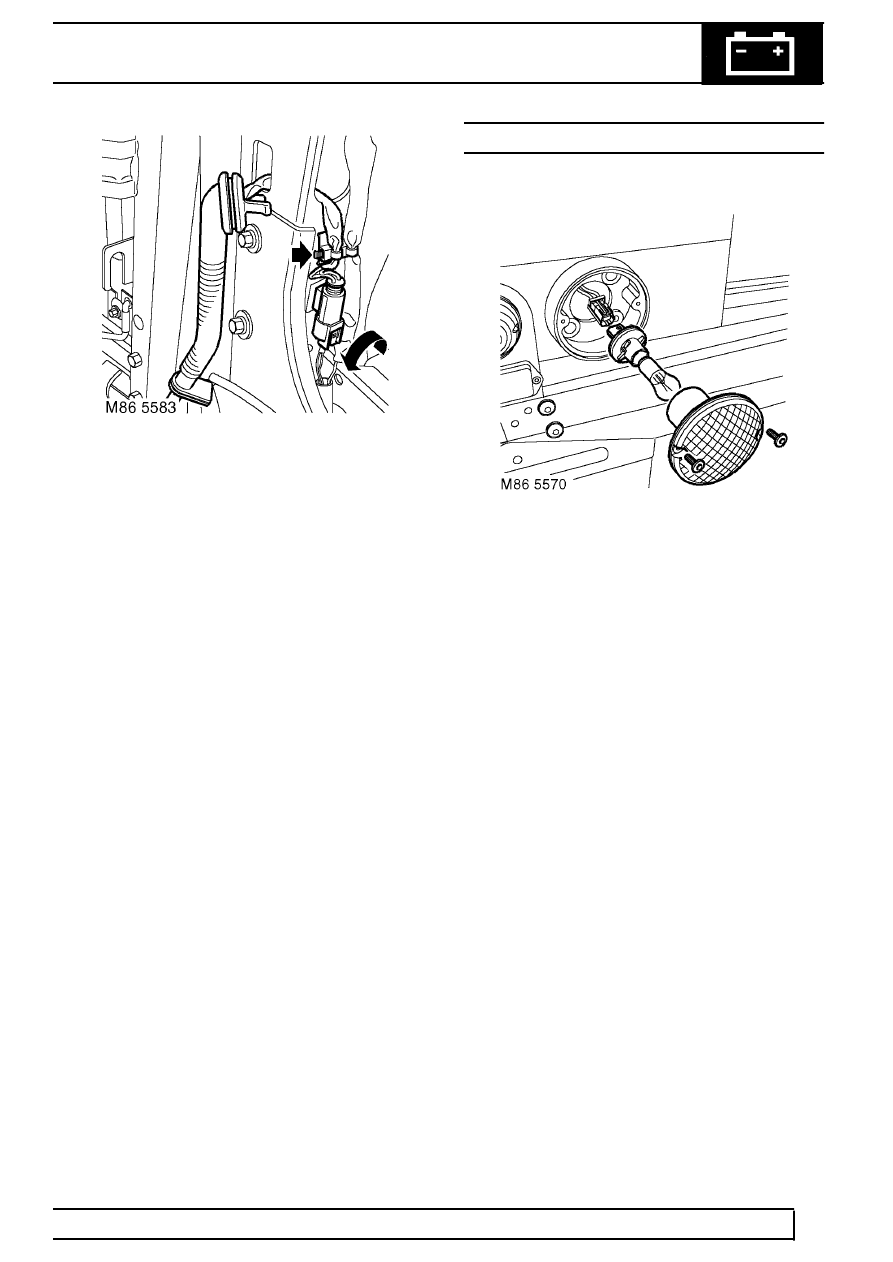

7. Release multiplug from location at base of ’B/C’
post and disconnect multiplug.
8. Release clip securing harness to ’B/C’ post.
9. Release harness sleeve and remove harness.
Refit
10. Feed harness through ’B/C’ post, connect and
secure multiplug.
11. Clip harness to ’B/C’ post and secure sleeve.
12. Connect multiplug to motor.
13. Secure harness clips and sleeve.
14. Connect check strap, fit nut and tighten
sufficiently to allow check strap to pivot without
rattling.
15. Secure plastic sheet.
16. Fit door trim casing. See CHASSIS AND
BODY, Repair.
REVERSE AND FOG GUARD LAMP - BULB
Service repair no - 86.40.90
Remove
1. Remove 2 screws securing lamp to housing and
withdraw. Disconnect bayonet bulb holder from
lamp housing.
2. Remove bulb.
Refit
3. Clean bulb and holder.
4. Fit new bulb to holder.
5. Fit bulb holder to lamp.
6. Position lamp, fit and tighten screws.
