TD5 Defender
ELECTRICAL
13
REPAIR

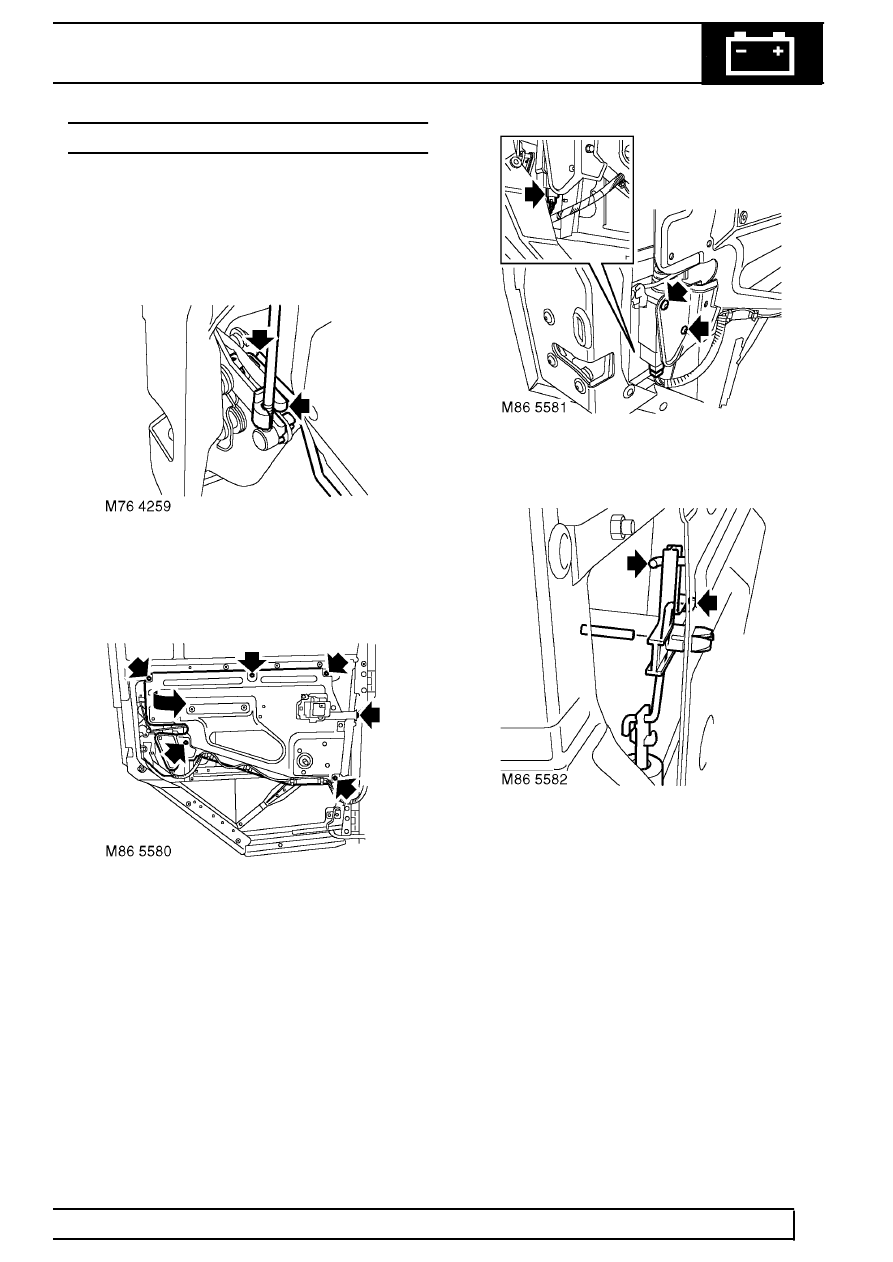

SOLENOID/MOTOR - REAR DOOR - FROM 02MY
Service repair no - 86.26.09
Remove
1. Remove plastic sheet. See CHASSIS AND
BODY, Repair.
2. Release clip, detach and remove lock solenoid
link.
3. Release clip and disconnect interior handle link
from latch mechanism.
4. Remove 3 bolts securing mounting panel.
5. Loosen remaining bolts and nut, ease mounting
panel away from door and retain in this position
for access.
6. Disconnect multiplug from solenoid.
7. Remove 2 screws securing solenoid.
8. Remove centre pin from bellcrank pivot and
release pivot from mounting panel.
9. Release bellcrank from sill button link and
remove from lock solenoid link.
10. Remove door lock solenoid.
11. Remove link from solenoid.
