TD5 Defender
86
ELECTRICAL
14
REPAIR
Refit
12. Fit link to solenoid, position solenoid, fit bellcrank
and connect to sill button link.
13. Secure bellcrank to mounting panel and fit
centre pin.
14. Align solenoid and fit and tighten screws.
15. Connect multiplug to solenoid.
16. Fit mounting panel bolts and tighten all bolts and
nut to 10 Nm (7 lbf.ft).
17. Connect interior handle link to latch and secure
with clip.
18. Fit and secure solenoid link.
19. Fit plastic sheet. See CHASSIS AND BODY,
Repair.

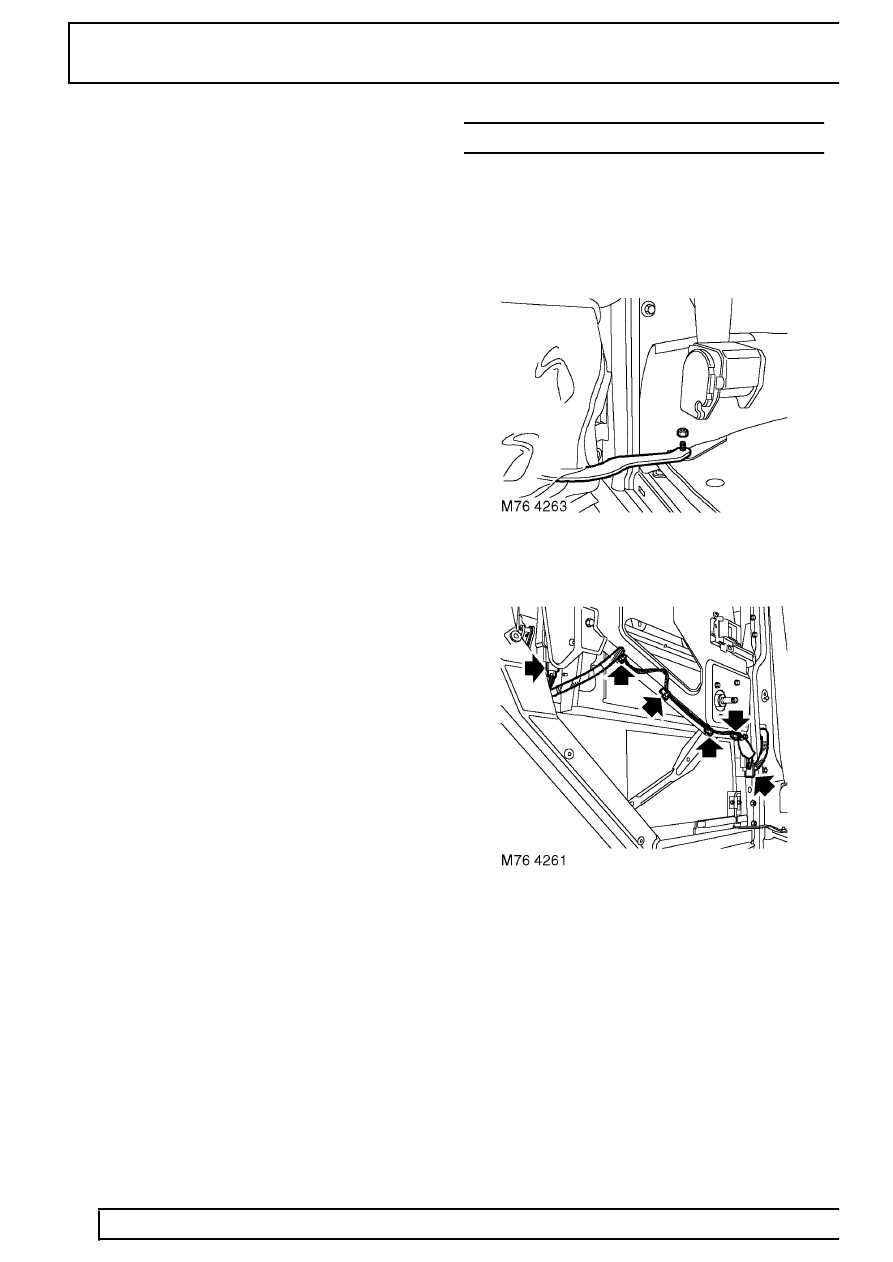

HARNESS - REAR DOOR - FROM 02MY
Service repair no - 86.26.19
Remove
1. Remove rear door trim casing. See CHASSIS
AND BODY, Repair.
2. Remove nut and disconnect check strap.
3. Carefully peel back section of plastic sheet for
access to harness.
4. Disconnect multiplug from solenoid.
5. Release clips securing harness to panel.
6. Release harness sleeve and withdraw harness
from door.
