Alarm system block diagram (Alarm system and horn)
- Make
- Land Rover
- Model
- Discovery II (UK)
- Section
- Description and operation › Alarm system block diagram
Alarm system and hornAlarm system block diagram

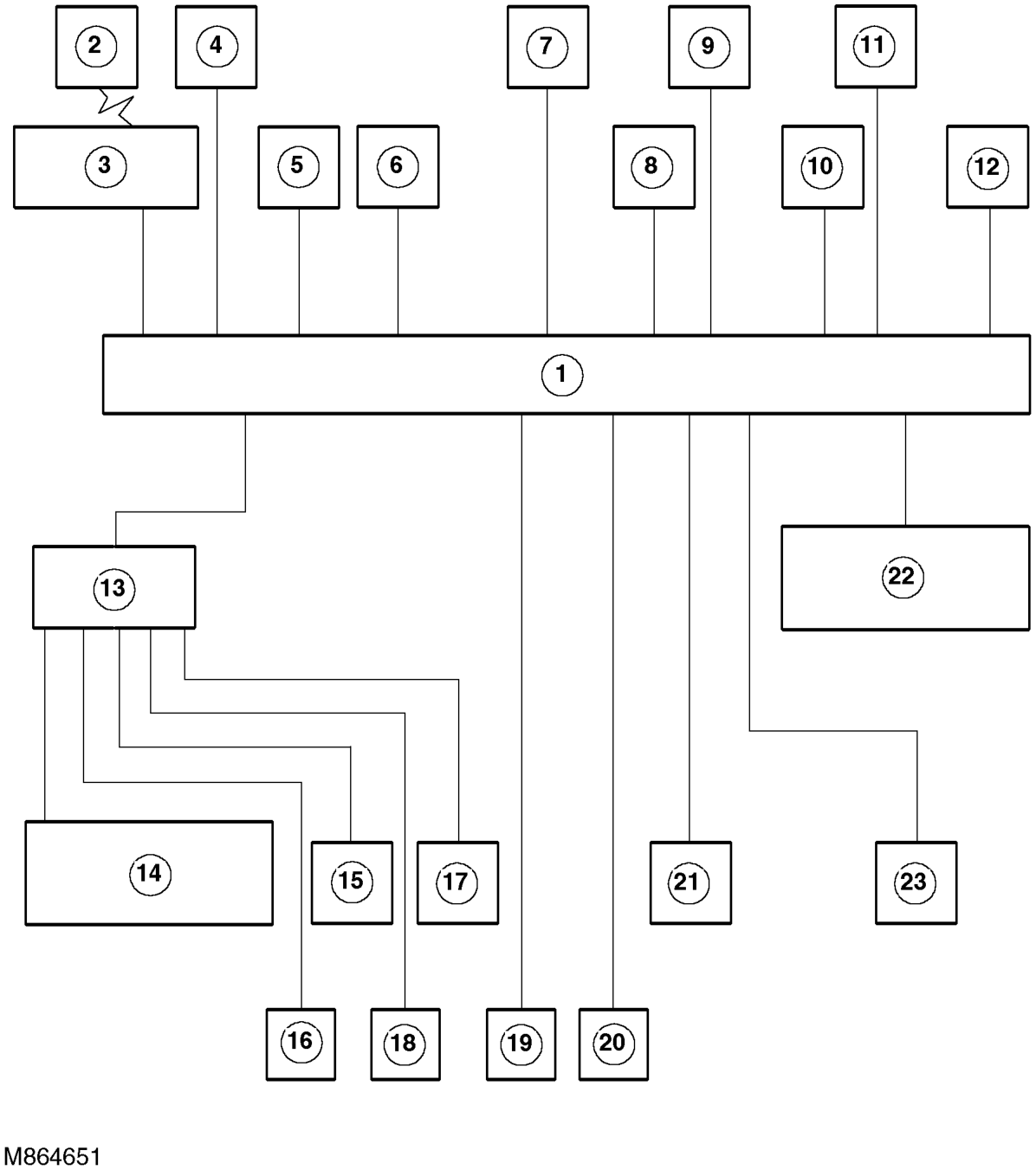

Alarm system block diagram
1 Body Control Unit (BCU) 2 Remote handset 3 Receiver 4 Fuel cut off switch 5 Ignition switch 6 Central door locking switch 7 Volumetric sensors 8 Bonnet activated alarm switch 9 Drivers door key lock/unlock switches 10 Door latch switches
11 Fuel flap release switch 12 Intelligent Driver Module (IDM) 13 Battery Backed Up Sounder (BBUS) 14 Alarm sounder 15 Vehicle horns 16 Direction indicators 17 Door lock actuators 18 Engine Control Module (ECM) 19 Starter motor
