Repairs › Control unit (ECU) - parking aid
Driving aidsControl unit (ECU) - parking aid

REPAIRS

Control unit (ECU) - parking aid

$% 86.54.10

Remove

Control unit (ecu) - parking aid – $% 86.54.10

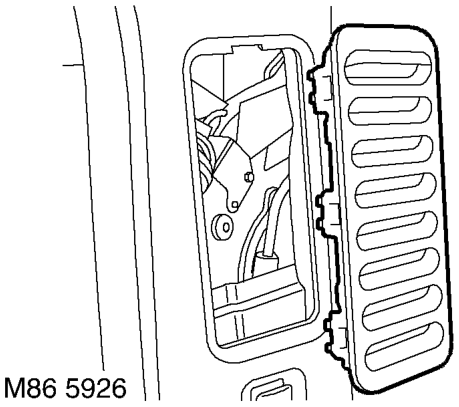

  1. Remove loadspace LH side trim casing access panel.

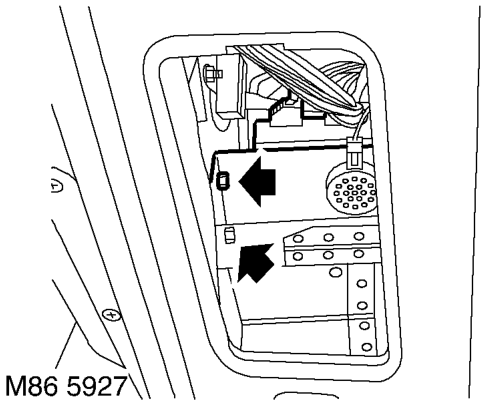

Control unit (ecu) - parking aid – Remove loadspace LH side trim casing access panel.

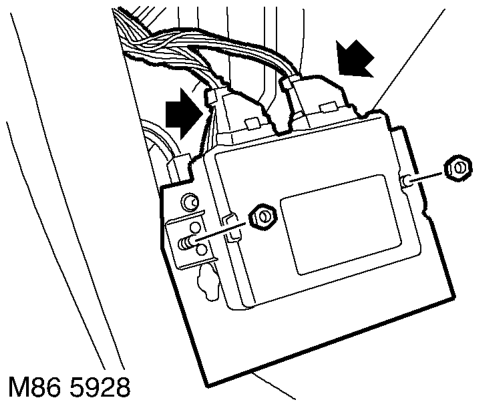

  1. Remove 2 bolts securing parking aid ECU mounting bracket to body and manoeuvre ECU and bracket assembly from behind trim casing.
Control unit (ecu) - parking aid – Remove 2 bolts securing parking aid ECU mounting bracket to body and manoeuvre ECU and bra
  1. Disconnect multiplug from ECU.
  2. Remove 2 nuts securing ECU to bracket.
  3. Remove ECU.

Refit

  1. Fit ECU to mounting bracket and fit and tighten nuts.
  2. Connect ECU multiplug.
  3. Manoeuvre ECU and mounting bracket assembly behind trim casing, align, fit bolts and tighten to 25 Nm (18 lbf.ft).
  4. Fit access panel.
