Driving aidsSounder - parking aid rear

Sounder - parking aid rear

$% 86.54.19

Remove

Sounder - parking aid rear – $% 86.54.19
  1. Remove loadspace LH side trim casing access panel.

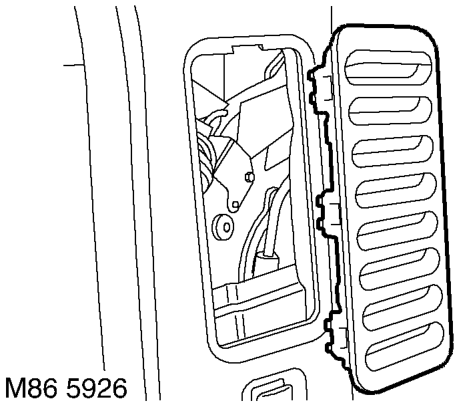

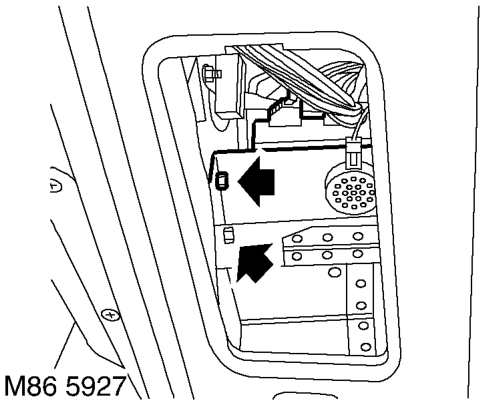

Sounder - parking aid rear – Remove loadspace LH side trim casing access panel.

Refit

  1. Remove 2 bolts securing parking aid ECU mounting bracket to body and manoeuvre ECU and bracket assembly from behind trim casing.

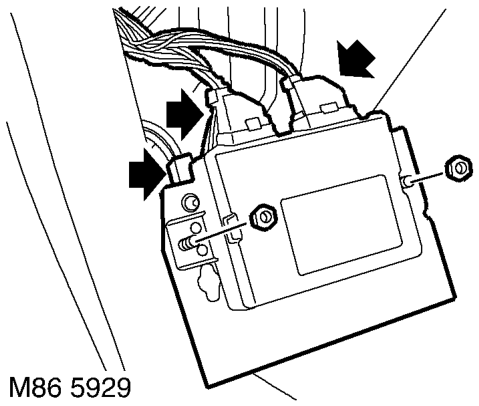

Sounder - parking aid rear – Remove 2 bolts securing parking aid ECU mounting bracket to body and manoeuvre ECU and bra
  1. Disconnect multiplugs from parking aid ECU and parking aid sounder.
  2. Remove 2 nuts and bolts securing parking aid ECU to bracket and remove the ECU.

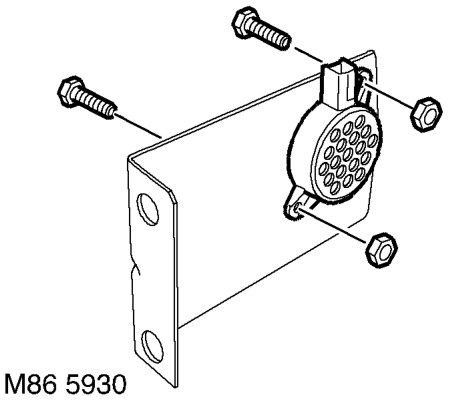

Sounder - parking aid rear – Remove 2 nuts and bolts securing parking aid ECU to bracket and remove the ECU.
  1. Remove 2 screws securing parking aid sounder to bracket and remove the sounder.
  2. Fit parking aid sounder to the bracket and secure with screws.
  3. Fit parking aid ECU to the bracket and secure with nuts and bolts.
  4. Connect multiplugs to parking aid ECU and parking aid sounder.
  5. Manoeuvre ECU and mounting bracket assembly behind trim casing, align, fit bolts and tighten to 25 Nm (18 lbf.ft).
  6. Fit and secure loadspace access panel.
