Engine management system - V8Cable - throttle

ADJUSTMENTS

Cable - throttle

$% 19.20.05

Adjust

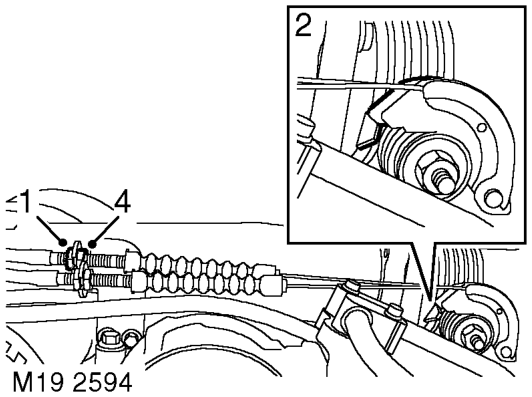

Cable - throttle – $% 19.20.05
  1. Loosen outer cable locknuts.
  2. Adjust the rear locknut until it is in contact with the back of the abutment bracket and the throttle lever is in contact with the inner driven lever.
  3. Ensure that the driven lever remains in contact with the throttle stop screw, (throttle closed).
  4. Tighten cable front nut to lock cable to abutment bracket.

Cable - cruise control

$% 19.75.11

Adjust

  1. Ensure that the throttle cable is correctly adjusted. ENGINE MANAGEMENT SYSTEM - V8, ADJUSTMENTS, Cable - throttle.

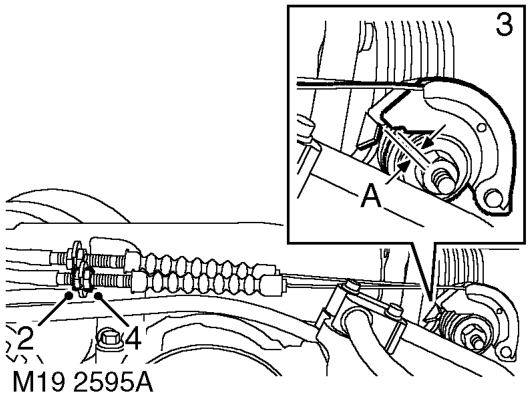

Cable - cruise control – Ensure that the throttle cable is correctly adjusted.  ENGINE MANAGEMENT SYSTEM - V8, ADJ
  1. Loosen outer cable locknuts.
  2. Adjust the rear locknut to obtain a 0.5 to 1.5 mm (0.019 to 0.060 in) gap, dimension 'A', between the cruise control cable lever and the throttle cable driven lever.
  3. Tighten cable front locknut.
