Engine management system - V8Spark plugs

REPAIRS

Spark plugs

$% 18.20.02

Remove

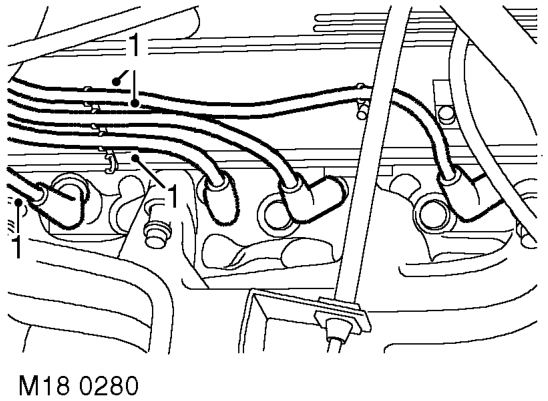

Spark plugs – $% 18.20.02
  1. Noting their fitted position, disconnect ht leads from spark plugs.
  2. Using a spark plug socket, remove 8 spark plugs.

Refit

  1. Fit terminals to new spark plugs.

CAUTION: Do not attempt to adjust spark plug gaps.

  1. Fit spark plugs and tighten to 25 Nm (18 lbf.ft).
  2. Connect ht leads to spark plugs ensuring they are in the correct position.

Coil - ignition

$% 18.20.45

Remove

  1. Remove upper inlet manifold assembly. MANIFOLDS AND EXHAUST SYSTEMS - V8, REPAIRS, Gasket - inlet manifold - upper - Without Secondary Air Injection.
Coil - ignition – Remove upper inlet manifold assembly.  MANIFOLDS AND EXHAUST SYSTEMS - V8, REPAIRS, Gaske

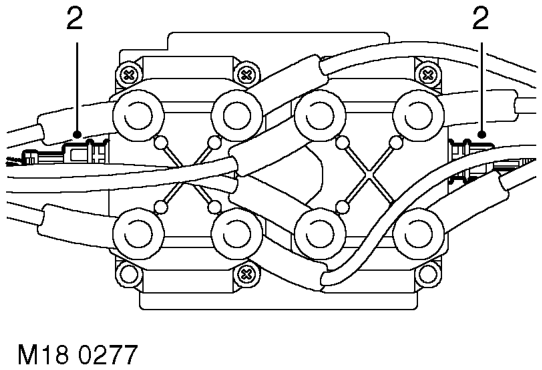

  1. Disconnect multiplugs from ignition coils.
Coil - ignition – Disconnect multiplugs from ignition coils.

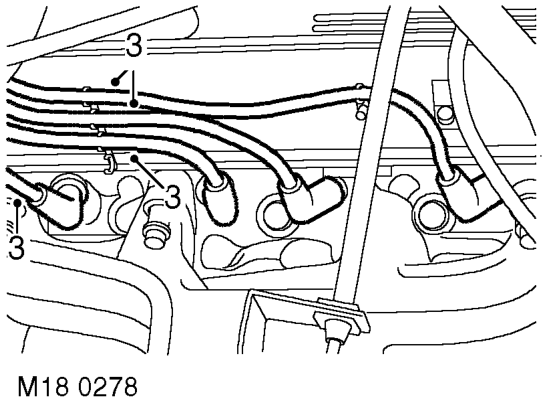

  1. Release ht leads from rocker covers and disconnect ht leads from spark plugs.
  2. Carefully manoeuvre ignition coil assembly from between engine and bulkhead.
