Section
Repairs › Injectors
Engine management system - V8Injectors · page 1 of 2

Injectors

$% 19.60.12

Remove

  1. Remove upper manifold. MANIFOLDS AND EXHAUST SYSTEMS - V8, REPAIRS, Gasket - inlet manifold - upper - Without Secondary Air Injection.

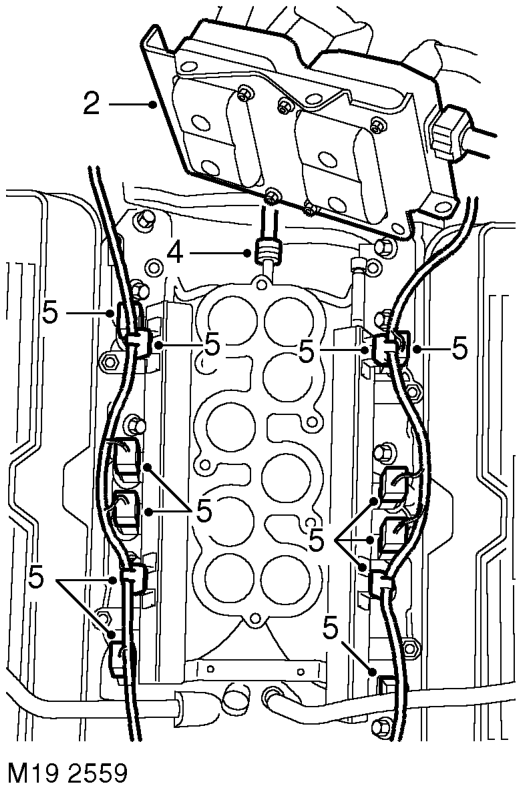

Injectors – Remove upper manifold.  MANIFOLDS AND EXHAUST SYSTEMS - V8, REPAIRS, Gasket - inlet manif
  1. Carefully manoeuvre ignition coil assembly from between inlet manifold and bulkhead.
  2. Position absorbent cloth beneath fuel pipe to catch spillage.
  3. Disconnect fuel feed hose from fuel rail

CAUTION: Always fit plugs to open connections to prevent contamination.

  1. Release injector harness from fuel rail and disconnect injector multiplugs.

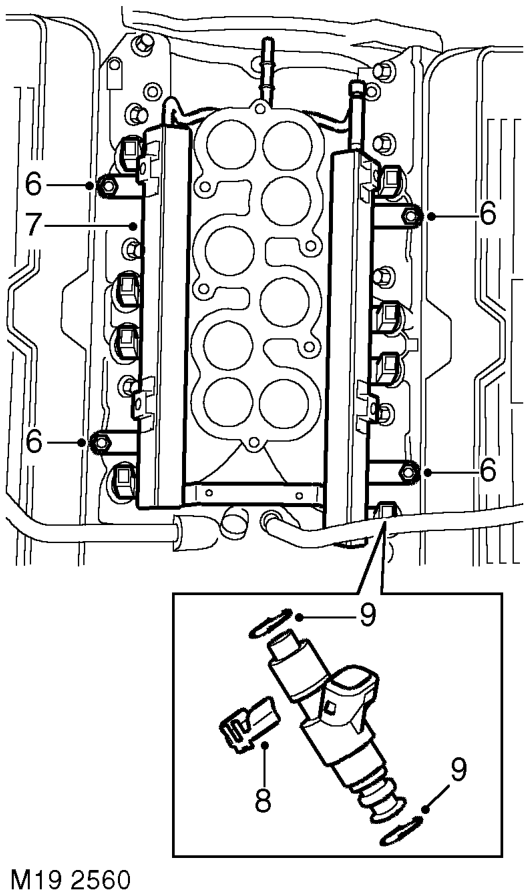

Injectors – Release injector harness from fuel rail and disconnect injector multiplugs.
  1. Remove 4 bolts securing fuel rail to inlet manifold.
  2. Release injectors from inlet manifold and remove fuel rail and injectors.
  3. Release spring clips securing injectors to fuel rail and remove fuel injectors.
  4. Remove and discard 2 'O' rings from each injector.
  5. Fit protective caps to each end of injectors.

Refit

  1. Clean injectors and recesses in fuel rail and inlet manifold.
  2. Lubricate new 'O' rings with silicone grease and fit to each end of injectors.
  3. Fit injectors to fuel rail and secure with spring clips.
  4. Position fuel rail assembly and push-fit each injector into inlet manifold.
