Engine control module (ECM)

Engine control module (ECM)

$% 18.30.01

Remove

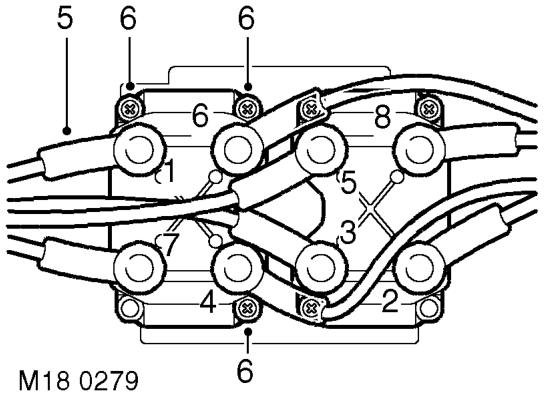

5. Noting their fitted position disconnect ht leads from ignition coil.
6. Remove 3 screws securing ignition coil to support bracket and remove coils.

Refit

1. Position ignition coil to support bracket, fit and tighten screws.
2. Connect ht leads to ignition coil ensuring they are in the correct position.
3. Carefully position ignition coil assembly between engine and bulkhead.
4. Connect ht leads to spark plugs and secure ht leads to rocker covers.
5. Connect multiplugs to ignition coils.
6. Fit upper inlet manifold assembly. MANIFOLDS AND EXHAUST SYSTEMS - V8, REPAIRS, Gasket - inlet manifold - upper - Without Secondary Air Injection.
1. Release fixings and remove battery cover.
2. Disconnect battery earth lead.

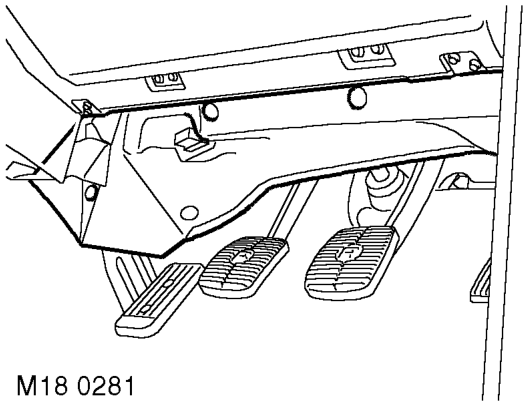

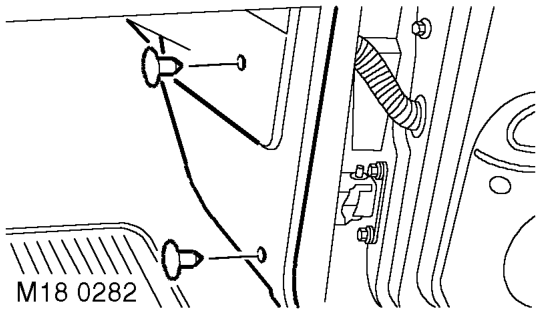

3. Remove fixings securing fascia RH closing panel, release diagnostic socket RH drive models, and remove panel.

4. Remove 2 fixings and remove 'A' post lower trim.
