Land Rover Discovery II (UK)14 · Engine management system - V8
14 · Engine

Throttle Body

Make
Land Rover
Model
Discovery II (UK)
Section
Repairs › Throttle Body
Engine management system - V8Throttle Body

Throttle Body

$% 19.22.45

Remove

1

M19 2576A

  1. Loosen 3 clips securing air intake hose, release air intake hose and position aside. Note: Pre 03 MY air intake hose illustrated.
Throttle body – Loosen 3 clips securing air intake hose, release air intake hose and position aside. Note:

Refit

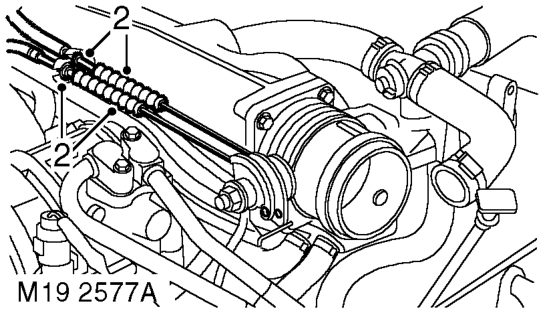

  1. Disconnect throttle and cruise control cables from throttle body.
Throttle body – Disconnect throttle and cruise control cables from throttle body.

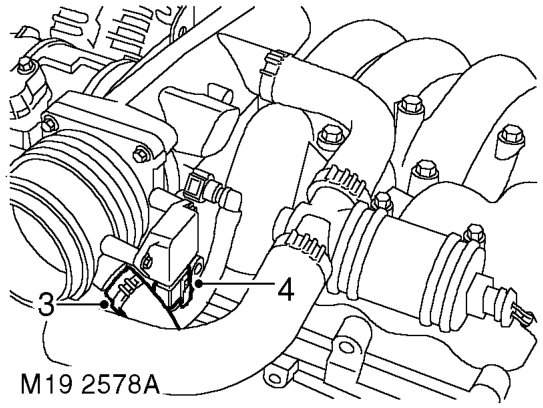

  1. Loosen clip securing breather hose and release hose.
  2. Disconnect multiplug from throttle body.
  3. Position a container below the throttle body to collect coolant spillage.
Throttle body – Position a container below the throttle body to collect coolant spillage.

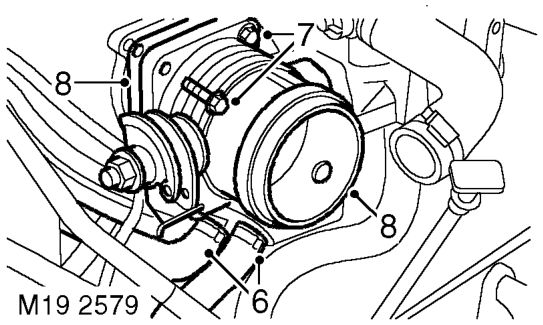

  1. Loosen 2 clips securing coolant hoses to throttle body and release hoses.
  2. Remove 4 bolts securing throttle body to plenum chamber.
  3. Remove throttle body and discard gasket.
  4. Clean plenum chamber and throttle body mating faces.
  5. Using a new gasket, position throttle body, fit bolts and tighten to 9 Nm (7 lbf.ft).
  6. Connect coolant hoses to throttle body and secure clips.
  7. Connect breather hose to throttle body and secure clip.
