Repairs › Air cleaner assembly
Engine management system - V8Air cleaner assembly

Air cleaner assembly

$% 19.10.01

Remove

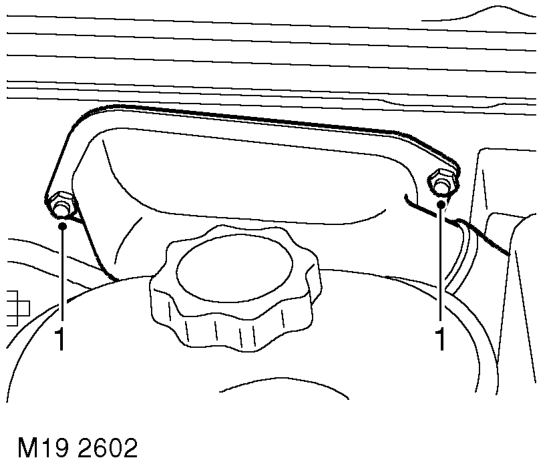

Air cleaner assembly – $% 19.10.01
  1. Remove 2 nuts securing air intake ducting.
  2. Remove both parts of air intake ducting.

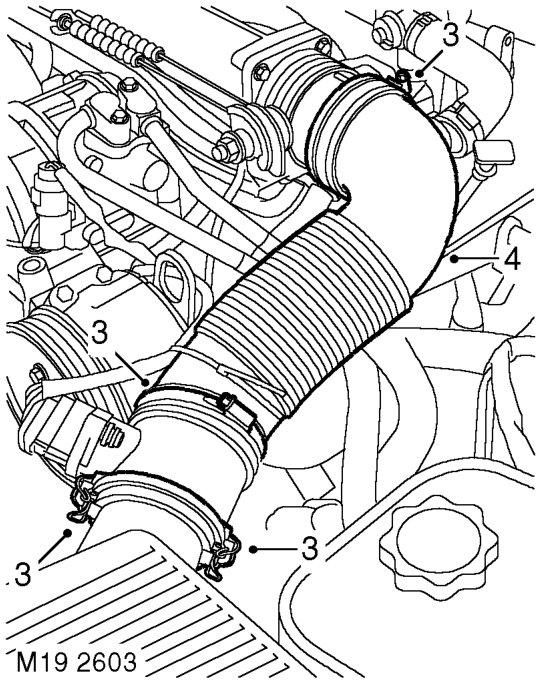

Air cleaner assembly – Remove both parts of air intake ducting.
  1. Release 2 clips securing MAF sensor, release 2 clips securing air intake hose. Note: Pre 03 MY air intake hose illustrated.
  2. Release air intake hose and position aside.

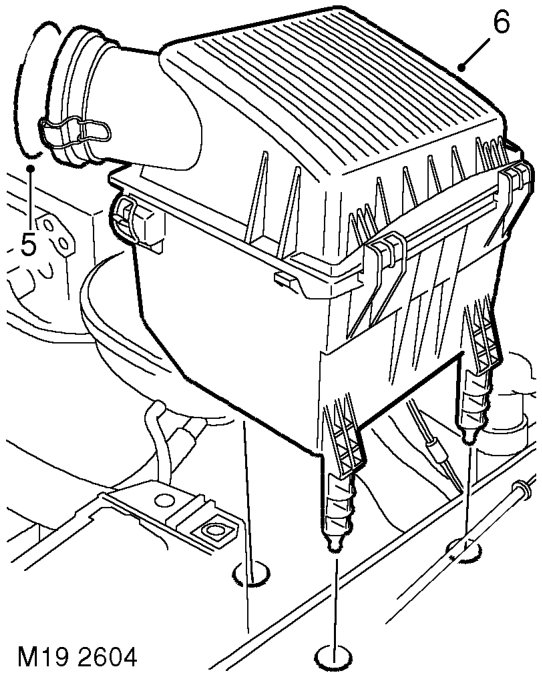

Air cleaner assembly – Release air intake hose and position aside.
  1. Remove and discard MAF sensor 'O' ring.
  2. Release air cleaner assembly from 3 grommets and remove assembly.

Refit

  1. Position air cleaner assembly and secure in grommets.
  2. Fit new 'O' ring to MAF sensor.
  3. Position air intake hose, secure MAF sensor clips and tighten intake hose clips.

CAUTION: Ensure MAF sensor 'O' ring is not displaced during fitting.

  1. Fit air intake ducting and secure with nuts.
