Sensor - Mass Air Flow (MAF)

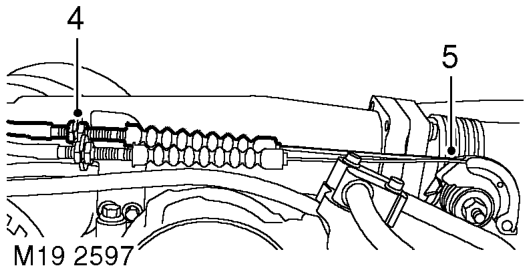

4. Release outer cable from clip, loosen lock nuts and remove outer cable from abutment bracket.
5. Release inner cable from operating lever and remove cable.

Refit

1. Position cable, secure to bulkhead and connect inner cable to throttle pedal.
2. Position inner cable to operating lever and connect outer cable to abutment bracket and retaining clip.
3. Position closing panel and secure fasteners.
4. Adjust throttle cable. ENGINE MANAGEMENT SYSTEM - V8, ADJUSTMENTS, Cable - throttle.

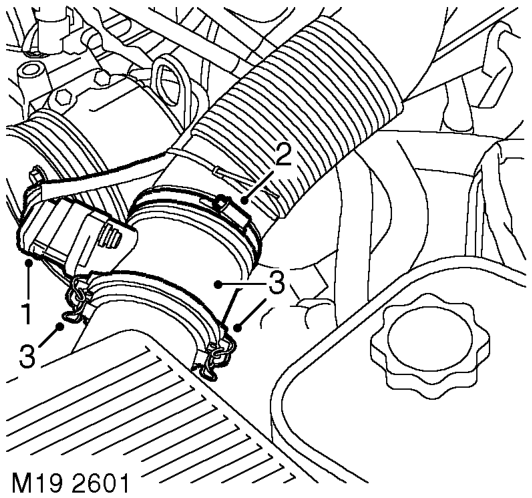

Sensor - Mass Air Flow (MAF)

$% 19.22.25

Remove

1. Disconnect multiplug from MAF sensor.

2. Loosen clip and release air intake hose from MAF sensor. Note: Pre 03 MY air intake hose illustrated.

3. Release 2 clips and remove MAF sensor from air cleaner, remove and discard 'O' ring.

Refit

1. Fit new MAF sensor 'O' ring, position MAF sensor to air cleaner and secure with clips.

CAUTION: Ensure 'O' ring is not displaced during fitting.

2. Position air intake hose to MAF sensor and secure with clip.
3. Connect multiplug to MAF sensor.
