Engine management system - V8Vacuum control unit - up to 03MY

Vacuum control unit - up to 03MY

$% 19.75.06

Remove

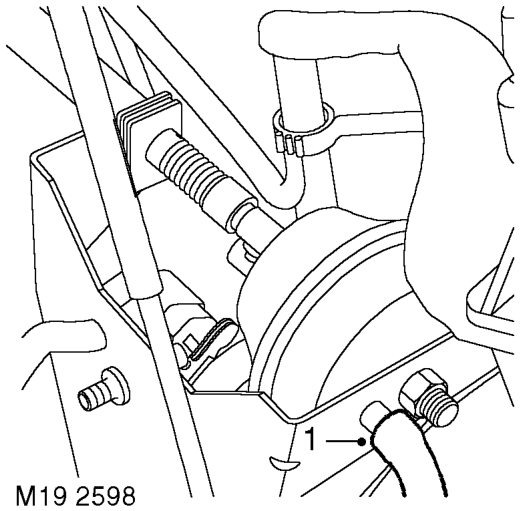

Vacuum control unit - up to 03my – $% 19.75.06
  1. Disconnect vacuum hose from actuator.

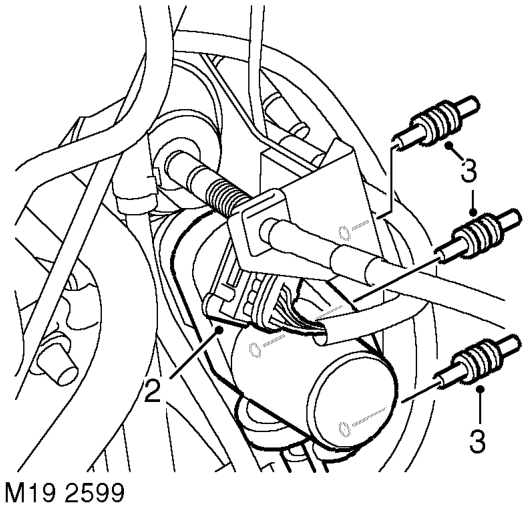

Vacuum control unit - up to 03my – Disconnect vacuum hose from actuator.
  1. Disconnect multiplug from vacuum control unit.
  2. Release 3 rubber mountings securing control unit, and remove from mounting bracket.
  3. Remove vacuum hose from control unit.

Refit

  1. Position vacuum hose to control unit.
  2. Position control unit and secure mountings.
  3. Connect multiplug and vacuum hose.

Vacuum control unit - from 03MY

$% 19.75.06

Remove

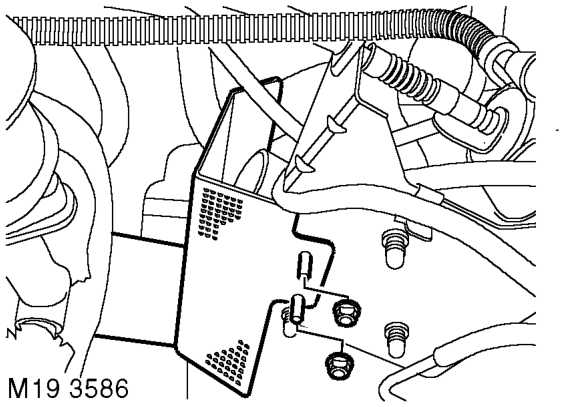

Vacuum control unit - from 03my – $% 19.75.06
  1. If fitted: Remove 2 nuts securing heat shield and remove heat shield.
Vacuum control unit - from 03my – If fitted: Remove 2 nuts securing heat shield and remove heat shield.
  1. Disconnect vacuum hose from actuator.
