Cable - cruise control

Cable - cruise control

$% 19.75.10

Remove

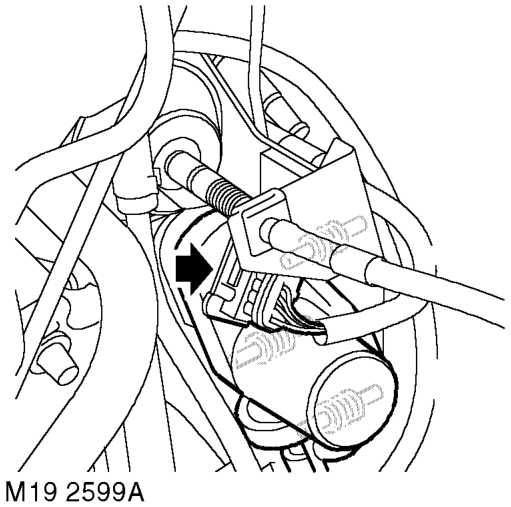

3. Disconnect multiplug from control unit.
4. Release 3 rubber mounting securing control unit to mounting bracket and remove control unit.

Refit

1. Position control unit and secure mountings.
2. Connect multiplug and vacuum hose.
3. If fitted: Fit heat shield, fit nuts and tighten to 10 Nm (7 lbf.ft).

Refit

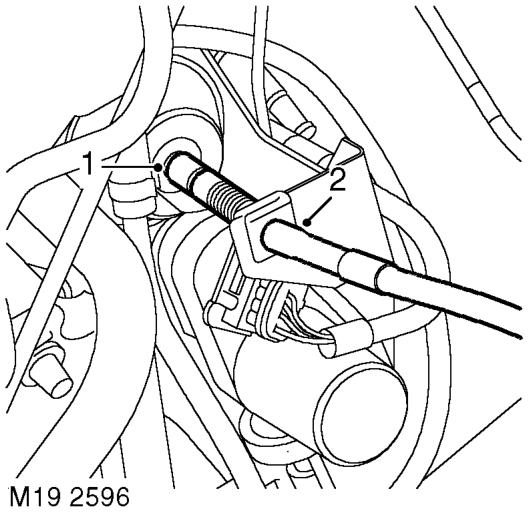

1. Release clip and disconnect inner cable from actuator.
2. Release outer cable from actuator mounting bracket.

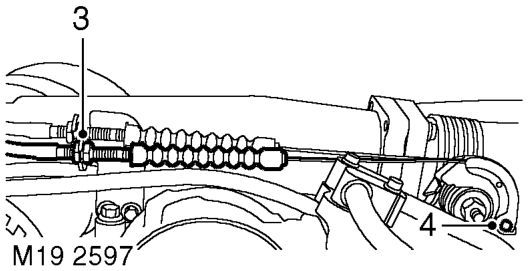

3. Loosen cable locknuts, release outer cable from abutment bracket and retaining clip.
4. Release inner cable from operating lever and remove cable.
1. Position cable and connect to operating lever.
2. Position cable to abutment bracket.
3. Position outer cable to actuator mounting bracket and connect inner cable to actuator.
4. Adjust cruise control cable. ENGINE MANAGEMENT SYSTEM - V8, ADJUSTMENTS, Cable - cruise control.
