Land Rover Discovery II (UK)14 · Engine management system - V8
14 · Engine

Sensor - radiator temperature

Make
Land Rover
Model
Discovery II (UK)
Section
Repairs › Sensor - radiator temperature
Engine management system - V8Sensor - radiator temperature
  1. Fit CKP sensor heat shield and secure with bolts.
  2. Fit underbelly panel and secure with fixings.
  3. Remove stand(s) and lower vehicle.
  4. Connect battery earth lead.
  5. Fit battery cover and secure the fixings.
  6. Reset adaptions using TestBook.

Sensor - radiator temperature

$% 18.30.20

Remove

  1. Disconnect battery earth lead.
  2. Position container to collect coolant spillage.

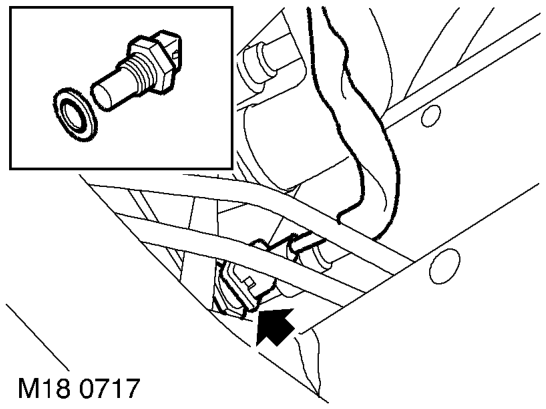

Sensor - radiator temperature – Position container to collect coolant spillage.
  1. Disconnect multiplug from sensor.
  2. Remove sensor and discard sealing washer.

Refit

  1. Fit new sealing washer to sensor.
  2. Fit and tighten sensor.
  3. Connect multiplug to sensor.
  4. Refill cooling system.
  5. Connect battery earth lead.
