Front and rear axle.

10. Remove stand(s) and lower vehicle.
11. Check differential oil level.

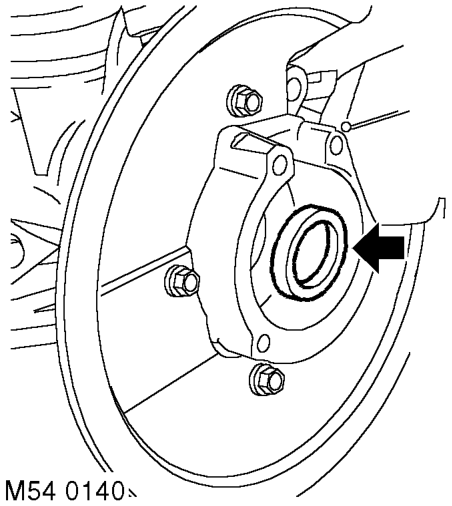

9. Remove oil seal from axle casing.

Refit

1. Clean drive shaft oil seal recess, oil seal running surface, wheel hub and swivel hub mating faces.
2. Lubricate oil seal lip and running surface with clean differential oil. CAPACITIES, FLUIDS AND LUBRICANTS, Lubrication.

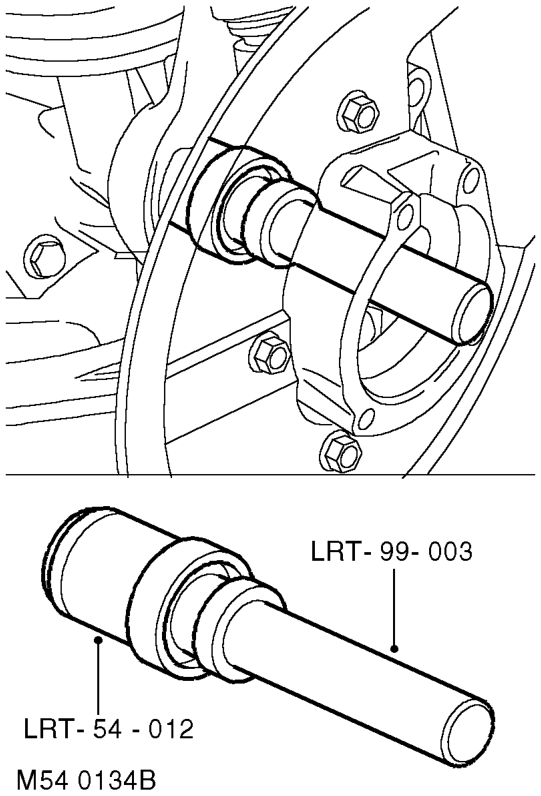

3. Using tool LRT-54-012 and tool LRT-99-003, fit new drive shaft oil seal to axle casing.
4. Apply anti-seize compound to wheel hub and steering knuckle mating faces.
5. Ensure ABS harness is located in cut out in steering knuckle.
6. Fit drive shaft and wheel hub to axle casing and align wheel hub with steering knuckle. Fit wheel hub bolts and tighten to 100 Nm (74 lbf.ft).
7. Connect ABS sensor multiplug and secure harness to harness bracket and brake hose.
8. Fit front brake disc. BRAKES, REPAIRS, Brake disc - front.
9. Fit road wheel and tighten nuts to 140 Nm (103 lbf.ft).

MAINTENANCE, PROCEDURES,

Front and rear axle.
