Front axleSeal - oil - front axle casing

Seal - oil - front axle casing

$% 54.15.04

Remove

  1. Raise front of vehicle.

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

  1. Remove road wheel.
  2. Remove front brake disc. BRAKES, REPAIRS, Brake disc - front.

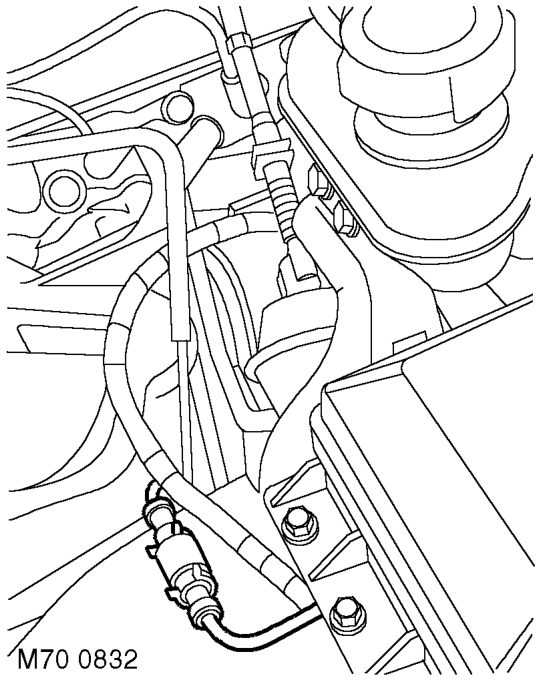

Seal - oil - front axle casing – Remove front brake disc.  BRAKES, REPAIRS, Brake disc - front.
  1. Disconnect ABS sensor multiplug.

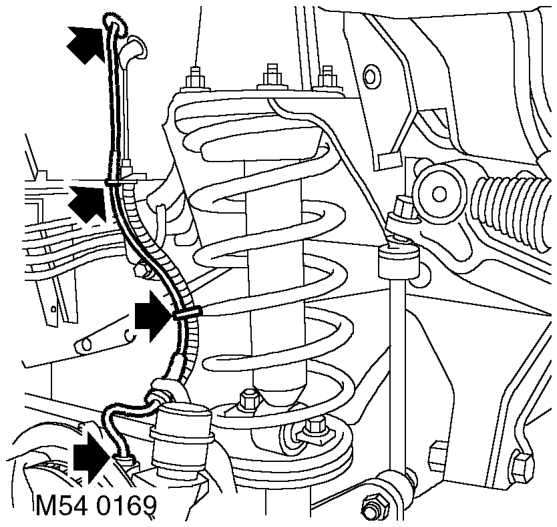

Seal - oil - front axle casing – Disconnect ABS sensor multiplug.
  1. Release harness from brake hose and hose bracket.

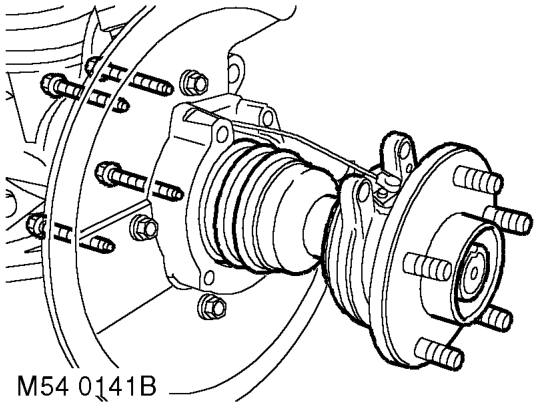

Seal - oil - front axle casing – Release harness from brake hose and hose bracket.
  1. Remove 4 bolts securing wheel hub to steering knuckle.
  2. Release wheel hub from steering knuckle.
  3. Remove wheel hub and drive shaft from axle.
