Seal - differential pinion
- Make
- Land Rover
- Model
- Discovery II (UK)
- Section
- Repairs › Seal - differential pinion
Rear axleSeal - differential pinion · page 1 of 2
Seal - differential pinion
$% 51.20.01
Remove
- Raise rear of vehicle.
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
| 2 3 |
| M51 0043A |
- Reference mark rear propeller shaft for reassembly.
- Remove 3 nuts and bolts securing flexible coupling to pinion flange. Tie propeller shaft aside.
LRT-51-008
| M51 0056 |
- Using tool LRT-51-008, extract the centralising peg from the pinion flange. Remove the centralising peg from the tool.
| LRT-51-003 |
| M51 0047A |
- Using tool LRT-51-003 to restrain pinion flange, remove bolt and washer securing pinion flange. Remove pinion flange.

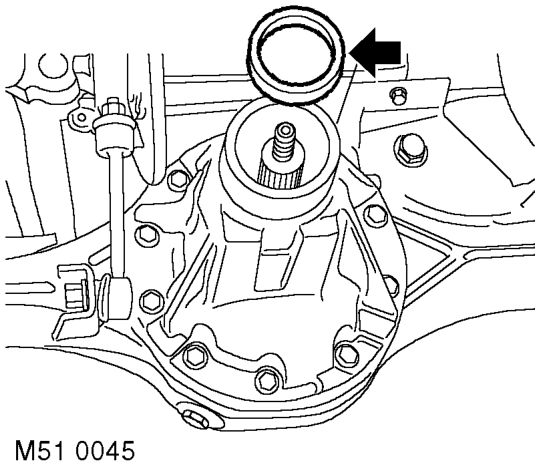

- Position container to catch oil spillage
- Using a suitable lever, remove pinion oil seal. Take care to avoid damage to oil seal recess.
