Seal - differential pinion (page 2 of 2)

Refit

1. Clean pinion oil seal recess and pinion flange.
2. Lubricate oil seal lip with clean differential oil. CAPACITIES, FLUIDS AND LUBRICANTS, Lubrication.

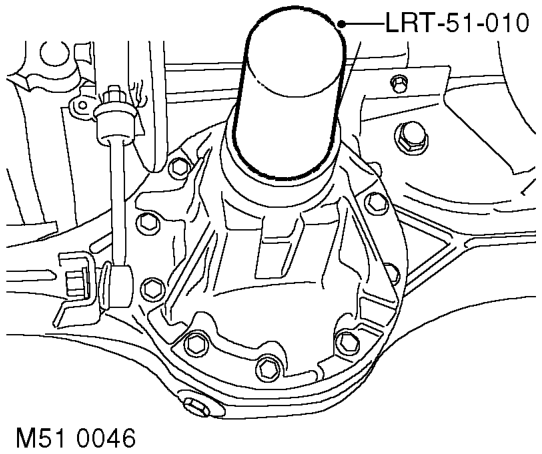

3. Using tool LRT-51-010, fit pinion oil seal.

4. Fit pinion flange and securing bolt and washer. Using tool LRT-51-003 to restrain pinion flange, tighten pinion flange securing bolt to 100 Nm (74 lbf.ft).
5. Using a tubular drift, fit centralising peg to pinion flange. Ensure that large diameter part of centralising peg is below pinion flange mounting surface.
6. Position propeller shaft and align reference marks.
7. Fit nuts and bolts securing flexible coupling to pinion flange and tighten to 76 Nm (55 lbf.ft).
8. Remove stand(s) and lower vehicle.
9. Check differential oil level. MAINTENANCE, PROCEDURES, Front and rear axle.
