Rear axleDifferential assembly · page 1 of 5

OVERHAUL

Differential assembly

$% 51.15.07

Disassembly

  1. Remove differential assembly.
  2. Secure differential assembly in a vice or stand.
Disassembly – Secure differential assembly in a vice or stand.

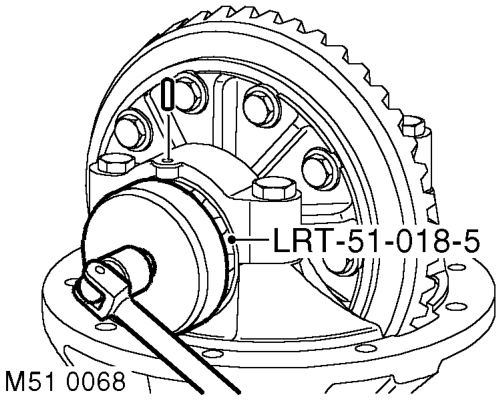

  1. Remove roll pins securing adjusting nuts, using LRT 51-018-5 loosen adjusting nuts.
  2. Reference mark bearing caps to aid assembly.
Disassembly – Reference mark bearing caps to aid assembly.

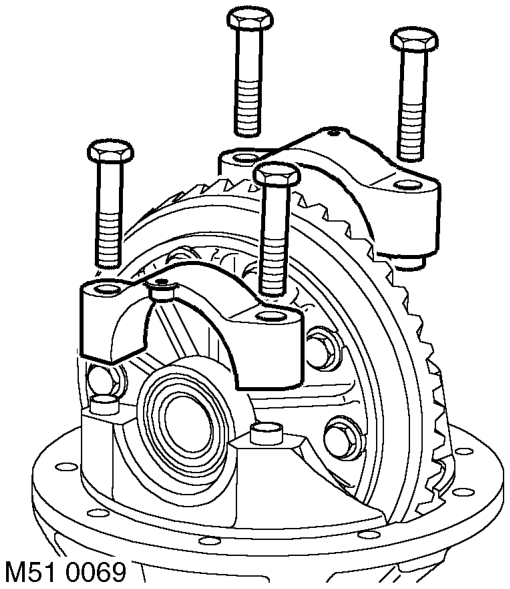

  1. Remove bolts securing bearing caps and remove caps.
Disassembly – Remove bolts securing bearing caps and remove caps.

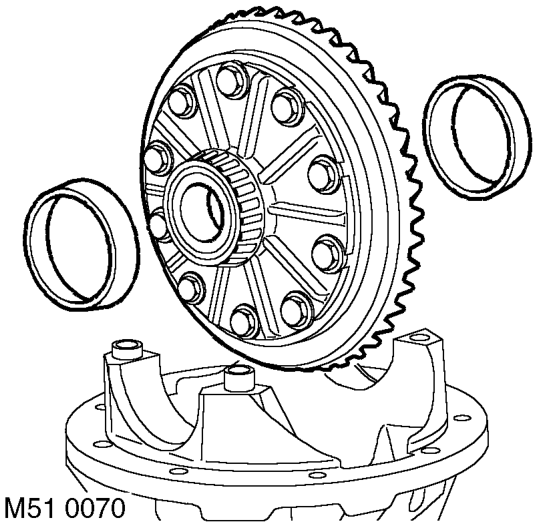

  1. Remove crown wheel assembly and collect bearing outer races.
  2. Mark outer races to bearings to aid assembly.
Disassembly – Mark outer races to bearings to aid assembly.

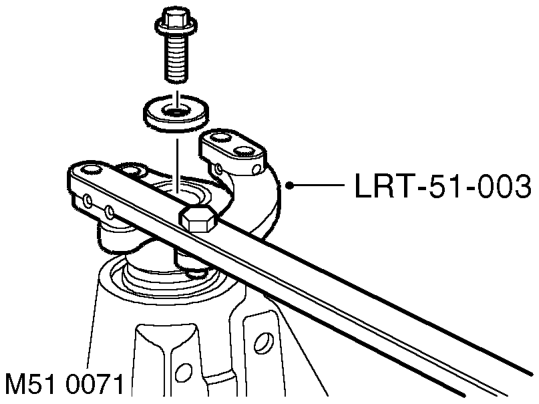

  1. Using LRT-51-003 to restrain pinion flange remove bolt and collect washer.
