Rear window isolation switch (Windows)

Rear window isolation switch

The rear window isolation switch allows the front seat occupants to disable the rear window switches.

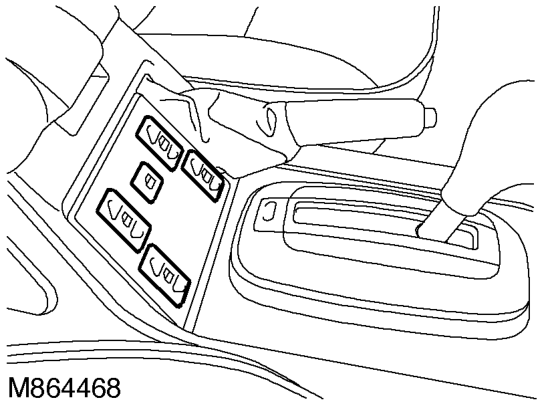

The rear window isolation switch is located in the centre console.

The rear window isolation switch is connected in the earth path in series with the rear door window switches. Operating the rear window isolation switch interrupts the earth path to the rear door window switches, preventing the rear door switches from operating the rear window motors. The rear windows can still be operated from the centre console rear window switches.

TestBook cannot monitor the status of the rear window isolation switch.
