Rear window motors

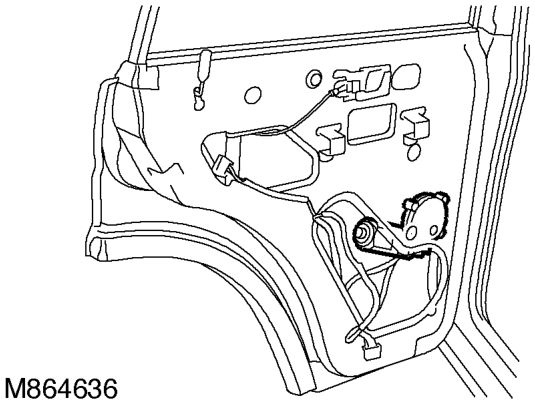

There is a rear window motor located in each rear door. The rear window motors are permanent magnet motors with an integral circuit breaker that provides stall protection.
The rear window switches provide battery voltage and an earth path to the rear window motors. Operating the switch in the opposite direction reverses the voltage and earth paths at the rear window motor, allowing the motor to run in the opposing direction.
TestBook cannot monitor the rear window lift motors.
