CASING - FRONT DOOR - 3 DOOR

Service repair no - 76.34.01

Remove

Casing - front door - 3 door – Service repair no - 76.34.01

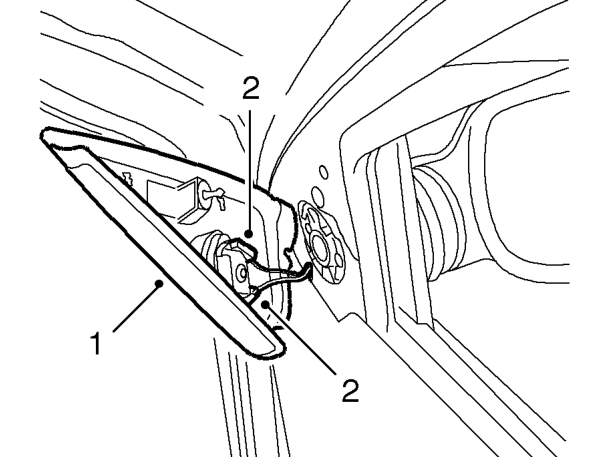

  1. Release cheater panel.
  2. Disconnect Lucars and remove cheater panel.
Casing - front door - 3 door – Disconnect Lucars and remove cheater panel.

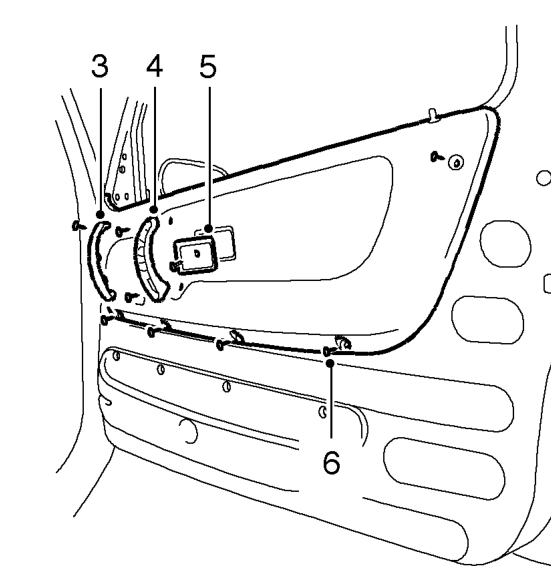

  1. Remove door pull centre trim.
  2. Remove 2 screws securing door pull and remove door pull.
  3. Remove screw securing door handle escutcheon and remove escutcheon.
  4. Remove 6 Torx screws securing door casing, release casing from 3 studs and sill button, remove casing.
Casing - front door - 3 door – Remove 6 Torx screws securing door casing, release casing from 3 studs and sill button, re

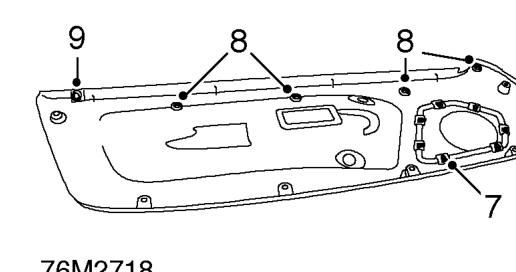

  1. Release 7 clips securing speaker grill and remove grill.
  2. Remove 4 casing studs.
  3. Remove sill button support.

Refit

  1. Position speaker grill and secure clips.
  2. Fit sill button support.
  3. Ensure casing studs are in position.
  4. Position casing to door, locate sill button and secure in studs.
  5. Fit and tighten Torx screws.
  6. Position door escutcheon, fit and tighten screw.
  7. Position door pull, fit and tighten screws.
  8. Fit door pull centre trim.
  9. Connect Lucars to cheater panel and locate panel in position.
