Casing - rear door

CASING - REAR DOOR

Service repair no - 76.34.04

Remove

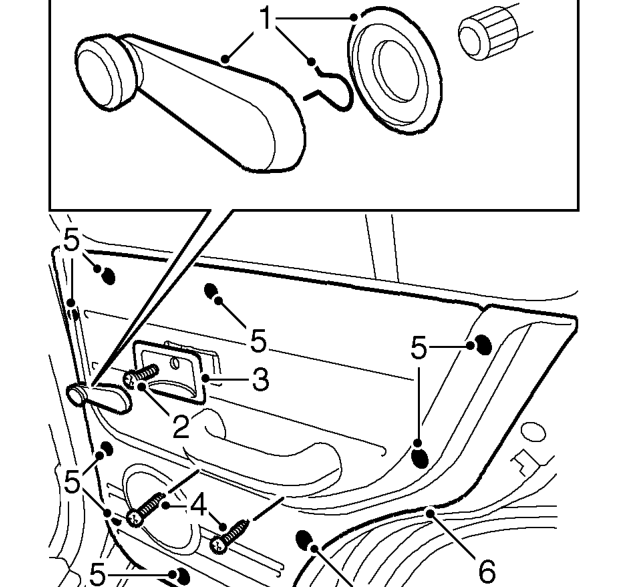

1. Remove clip from window winder handle, remove handle and escutcheon.
2. Remove screw securing door release escutcheon.
3. Push escutcheon in and to the rear of door to release from securing catch, remove escutcheon.
4. Remove 2 screws from door pull.
5. Release 10 trim studs.
6. Remove casing.

Do not carry out further dismantling if component is removed for access only.

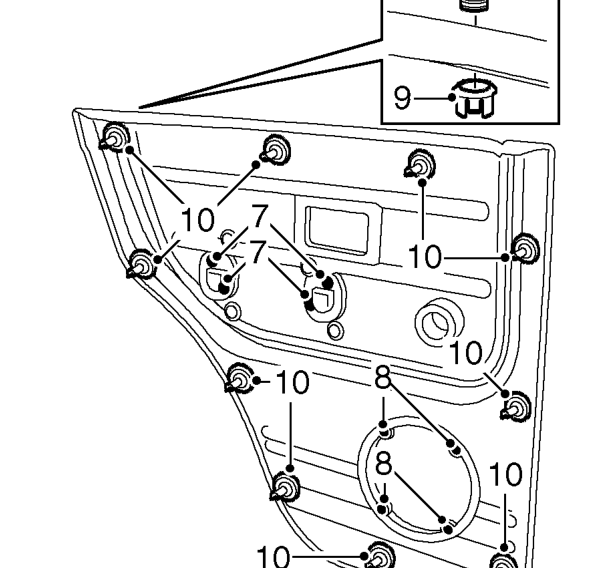

7. Remove 4 Torx screws from door pull, and remove door pull.
8. Remove 4 Torx screws from speaker grille and remove grille.
9. Release retainer and remove sill button guide.
10. Remove 10 trim studs.
11. Fit trim studs to replacement trim casing.
12. Fit sill button guide to replacement casing and secure with retainer.
13. Fit speaker grille to replacement casing and secure with Torx screws.
14. Fit door pull to replacement casing and secure with Torx screws.

Refit

1. Position casing to door and engage trim studs.
2. Fit door pull screws.
3. Position door release escutcheon and secure with screw.
4. Fit window winder escutcheon and window winder and secure with clip.
