Land Rover Freelander Body Repair Manual (1998 on)05 · Body
05 · Body & interior

Door release - interior - rear door

Make
Land Rover
Model
Freelander Body Repair Manual
Year
1998 on
Section
Doors › Door release - interior - rear door
BodyDoor release - interior - rear door

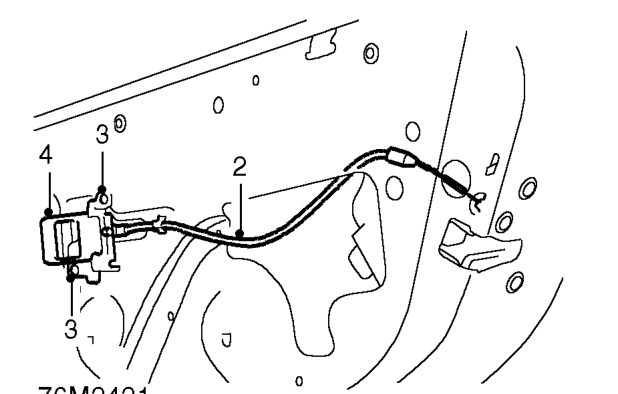

DOOR RELEASE - INTERIOR - REAR DOOR

Service repair no - 76.37.32

Remove

  1. Remove rear door water shedder. See this section.
Door release - interior - rear door – Remove rear door water shedder. See this section.
  1. Release cable from door release.
  2. Drill out 2 rivets from door release.
  3. Remove door release.

Refit

  1. Connect cable to door release.
  2. Position door release and secure with rivets.
  3. Fit water shedder. See this section.

CABLE - INTERIOR DOOR RELEASE - FRONT DOOR

Service repair no - 76.37.60

Remove

  1. Remove front door latch. See this section.
Cable - interior door release - front door – Remove front door latch. See this section.
  1. Release cable from interior door release and remove cable.

Refit

  1. Connect cable to interior door release.
  2. Fit door latch. See this section.
