Water shedder - rear door

WATER SHEDDER - REAR DOOR

Service repair no - 76.34.28

NOTE: Always replace a damaged water shedder.

Remove

1. Remove rear door speaker. See ELECTRICAL, Repairs.

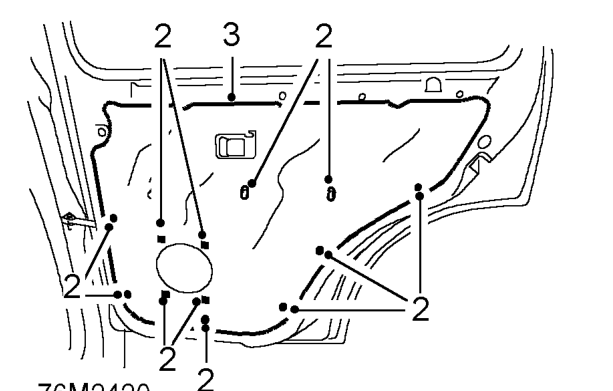

2. Noting their fitted position, remove 10 trim stud retainers and 2 door pull securing screw retainers.
3. Release and discard water shedder.

Refit

1. Clean door contact area with white spirit.
2. Position NEW water shedder to door and seal in position, by applying hand pressure to centre bottom of shedder first then move out from this point in both directions applying and even pressure to the seal, smooth out any creases.

CAUTION: It is crucial that no creases are present along the base of the water shedder.

NOTE: To obtain an effective seal when fitting a new water shedder, ensure that the water shedder and door contact surface are at room temperature: between 18 °C to 30 °.

3. Fit 10 trim stud retainers and 2 door pull securing screw retainers.
4. Fit rear door speaker. See ELECTRICAL, Repairs.
