Seal - glass channel - rear door

SEAL - GLASS CHANNEL - REAR DOOR

Service repair no - 76.31.14

Remove

1. Remove rear door glass. See this section.

2. Release seal from flange. Remove lower section first, then the front vertical section, followed by the top section.

CAUTION: If seal is to be re-used, do not use excessive force or seal will be damaged.

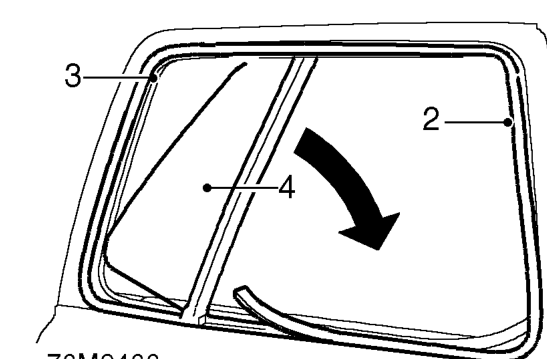

3. Release top corner of quarter light from frame. Rotate quarter light and seal, release rest of seal from flange and remove quarter light and seal from door.
4. Remove quarter light from seal.

Refit

1. Fit quarter light to seal.
2. Lubricate seal around quarter light with soft soap.
3. Position quarter light and seal to flange at bottom rear corner of window aperture and rotate into top rear corner. Using dividing bar, pull quarter light rearwards to locate seal around quarter light on flange.
4. Starting at top of divider bar, push seal onto top flange and locate in top front corner. Ensure radius of seal matches door profile.
5. Ease seal away from front flange and locate seal in bottom front corner. Ensure radius of seal at bottom front corner matches profile of door and that seal is still correctly located in top front corner, then push seal onto front flange.
6. Push seal onto bottom flange.
7. Fit rear door glass. See this section.
