Water shedder - front door - 5 door

WATER SHEDDER - FRONT DOOR - 5 DOOR

Service repair no - 76.34.26

NOTE: Always replace a damaged water shedder.

Remove

1. Remove front door speaker. See ELECTRICAL, Repairs.

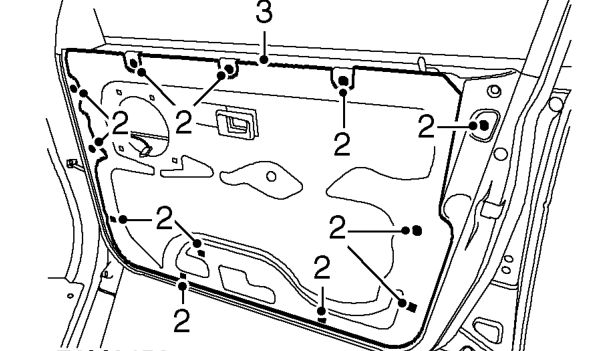

2. Noting their fitted position, remove door casing retainers.
3. Release and discard water shedder.

Refit

1. Clean door contact area with white spirit.
2. Position NEW water shedder to door and seal in position, by applying hand pressure to centre bottom of shedder first then move out from this point in both directions applying an even pressure to the seal, smooth out any creases.

CAUTION: It is crucial that no creases are present along the base of the water shedder.

NOTE: To obtain an effective seal when fitting a new water shedder, ensure that the water shedder and door contact surface are at room temperature: 18 °C to 30 °C.

3. Fit door casing retainers.
4. Fit front door speaker. See ELECTRICAL, Repairs.
