Glass - rear door

GLASS - REAR DOOR

Service repair no - 76.31.02

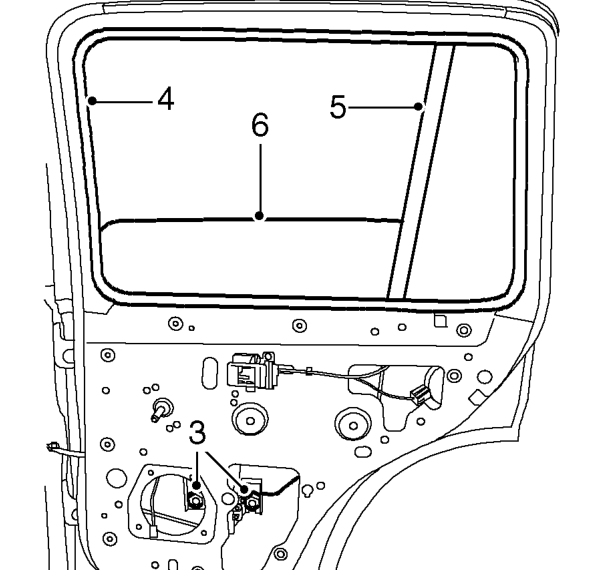

Remove

1. Remove rear door water shedder. See this section.

2. Lower glass to access nuts on clamps.
3. Loosen 2 nuts securing clamps to glass.
4. Remove seal from door.
5. Release glass from quarter light seal.
6. Raise glass and remove from door.

Refit

1. Fit glass to door and locate in quarter light seal.
2. Fit seal to door.
3. Position glass in clamps and tighten nuts to 8 Nm.
4. Raise/lower glass to check seal fit.
5. Fit water shedder. See this section.
