Land Rover Freelander Body Repair Manual (1998 on)05 · Body
05 · Body & interior

Cable - interior door release - rear door

Make
Land Rover
Model
Freelander Body Repair Manual
Year
1998 on
Section
Doors › Cable - interior door release - rear door
BodyCable - interior door release - rear door

CABLE - INTERIOR DOOR RELEASE - REAR DOOR

Service repair no - 76.37.61

Remove

  1. Remove rear door latch. See this section.

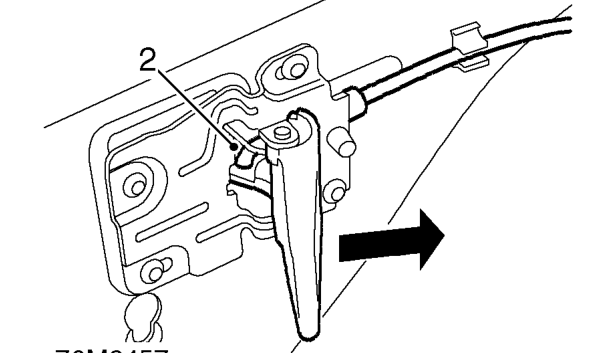

Cable - interior door release - rear door – Remove rear door latch. See this section.
  1. Release cable from door release and remove cable.

Refit

  1. Connect and secure cable to door release.
  2. Fit door latch. See this section.

FINISHER - UPPER - TAIL DOOR GLASS

Service repair no - 76.43.74

Remove

  1. Remove tail door glass side finishers. See this section.

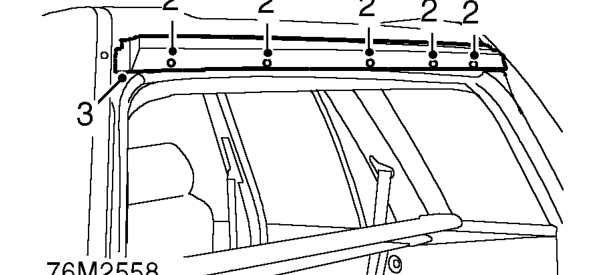

Finisher - upper - tail door glass – Remove tail door glass side finishers. See this section.
  1. Release 5 clips securing finisher to bracket.
  2. Remove tail door glass upper finisher.
  3. Remove and discard clips from finisher and/or bracket.

Refit

  1. Fit NEW clips to finisher.
  2. Fit finisher and secure clips to bracket.
  3. Fit tail door glass side finishers. See this section.
