CASING - FRONT DOOR - 5 DOOR

Service repair no - 76.34.01

Remove

Casing - front door - 5 door – Service repair no - 76.34.01

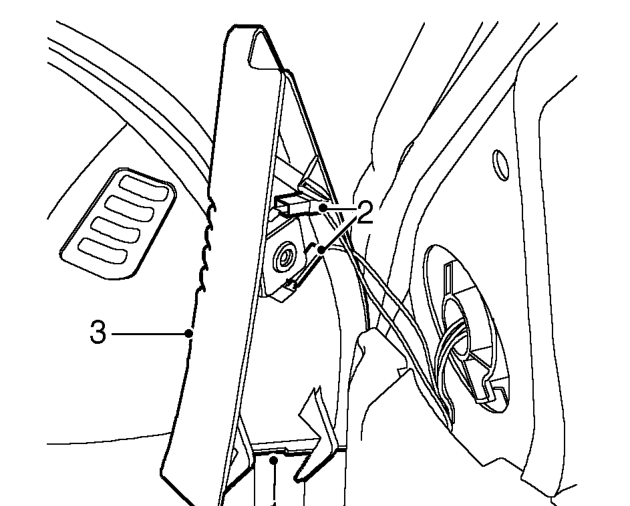

  1. Release cheater panel from door.
  2. Disconnect Lucars from tweeter speaker.
  3. Remove cheater panel.
Casing - front door - 5 door – Remove cheater panel.

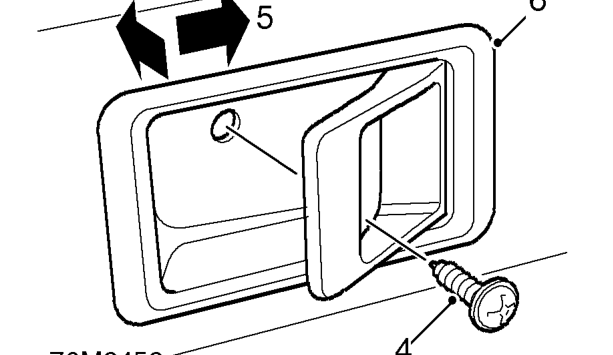

  1. Remove screw securing door release escutcheon.
  2. Push escutcheon in and to the rear of door to release securing catch.
  3. Remove escutcheon.
Casing - front door - 5 door – Remove escutcheon.

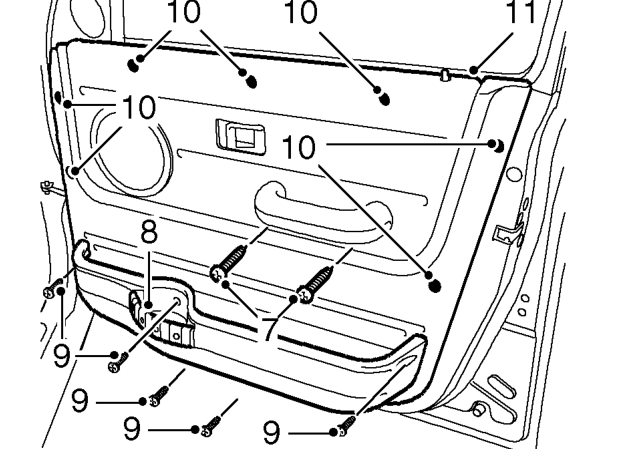

  1. Remove 2 screws from door pull.
  2. Remove cup retainer.
  3. Remove 5 screws securing door pocket.
  4. Release 7 trim studs.
  5. Remove casing.
