Casing - front door - 5 door (page 2 of 2)

Do not carry out further dismantling if component is removed for access only.

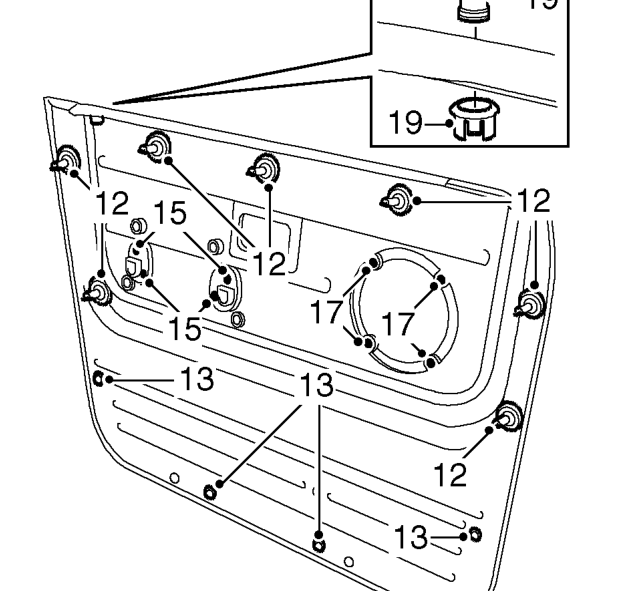

12. Remove 7 trim studs from casing.
13. Remove 4 Torx screws securing door pocket.
14. Remove door pocket.
15. Remove 4 Torx screws from door pull.
16. Remove door pull.
17. Remove 4 Torx screws from door speaker grille.
18. Remove speaker grille.
19. Release retainer and remove sill button guide.
20. Fit sill button guide to replacement casing and secure with retainer.
21. Fit speaker grille to replacement casing and secure with Torx screws.
22. Fit door pull to replacement casing and secure with Torx screws.
23. Fit door pocket to replacement casing and secure with Torx screws.
24. Fit trim studs to replacement casing.

Refit

1. Position casing to door and engage trim studs.
2. Fit screws securing door pocket.
3. Fit cup holder.
4. Fit door pull.
5. Position door release escutcheon and secure with screw.
6. Connect Lucars to tweeter speaker.
7. Fit cheater panel.
