Land Rover Freelander Body Repair Manual (1998 on)05 · Body
05 · Body & interior

Handle - exterior - rear door

Make
Land Rover
Model
Freelander Body Repair Manual
Year
1998 on
Section
Doors › Handle - exterior - rear door
BodyHandle - exterior - rear door

HANDLE - EXTERIOR - REAR DOOR

Service repair no - 76.58.02

Remove

  1. Remove rear door water shedder. See this section.

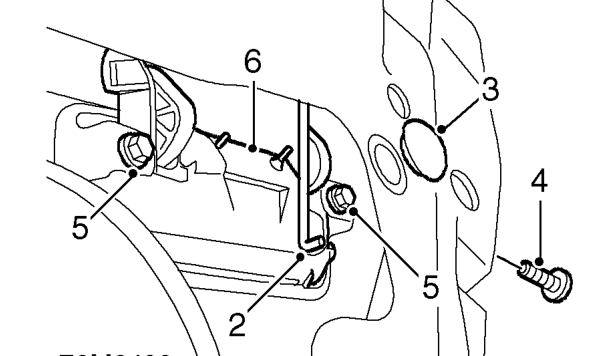

Handle - exterior - rear door – Remove rear door water shedder. See this section.
  1. Release door latch control rod.
  2. Remove grommet to access screw.
  3. Remove 3 Torx screws securing door latch release and lower latch to access screw.
  4. Remove 2 screws securing door handle.
  5. Remove door handle.

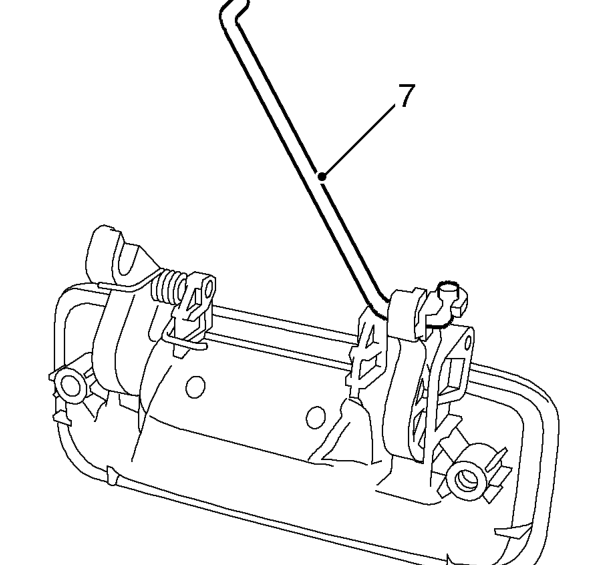

Handle - exterior - rear door – Remove door handle.
  1. Remove door latch control rod.

Refit

  1. Fit door latch control rod to handle.
  2. Position handle to door and tighten securing screws.
  3. Position door latch, fit and tighten Torx screws.
  4. Fit grommet.
  5. Connect door latch control rod.
  6. Fit water shedder. See this section.
