Door assembly - rear

DOOR ASSEMBLY - REAR

Service repair no - 76.28.02/99

Remove

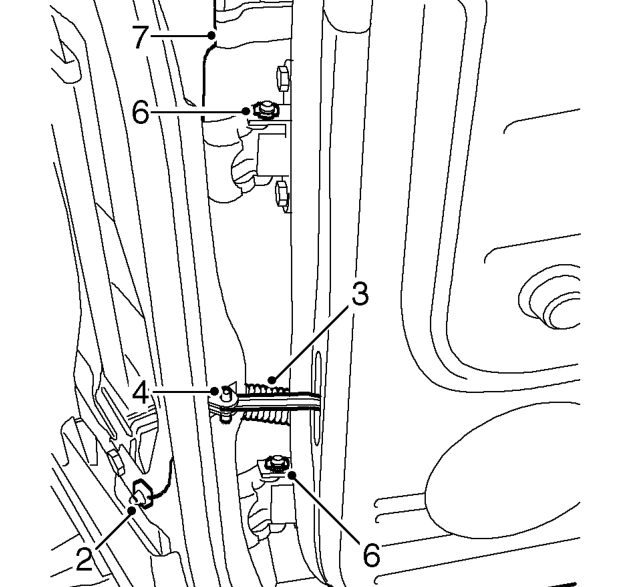

1. Release ’B/C’ post upper finisher and position aside. See Interior trim components.

2. Release and disconnect multiplug from lower ’B/C’ post.
3. Release harness sheath from ’B/C’ post and pull door harness through ’B/C’ post.
4. Remove roll pin from door check strap, and release check strap from ’B/C’ post.
5. Discard roll pin.
6. Remove 2 ’C’ clips from door hinges.
7. With assistance raise and remove door.

Refit

1. With assistance position door to hinges.
2. Fit ’C’ clips to hinge pins.
3. Position check strap to ’B/C’ post and secure with NEW roll pin.
4. Feed door harness through ’B/C’ post and secure harness sheath.
5. Connect and secure multiplug at base of ’B/C’ post.
6. Fit ’B/C’ post upper finisher. See Interior trim components.
7. Check door alignment. See Adjustments.
