REGULATOR - REAR SCREEN

Service repair no - 76.31.65

Remove

  1. Remove rear screen. See this section.
Regulator - rear screen – Remove rear screen. See this section.

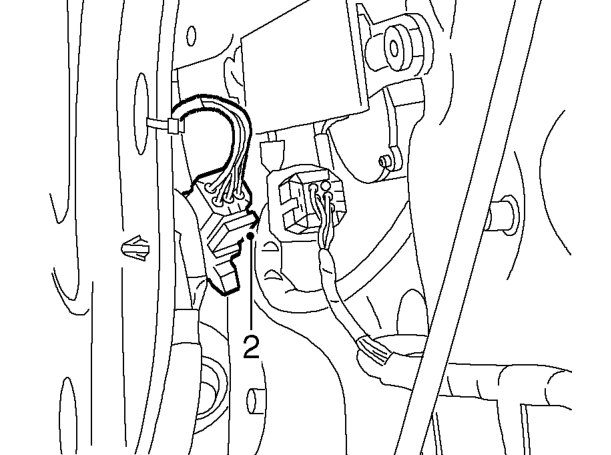

  1. Disconnect multiplug from regulator motor.
Regulator - rear screen – Disconnect multiplug from regulator motor.

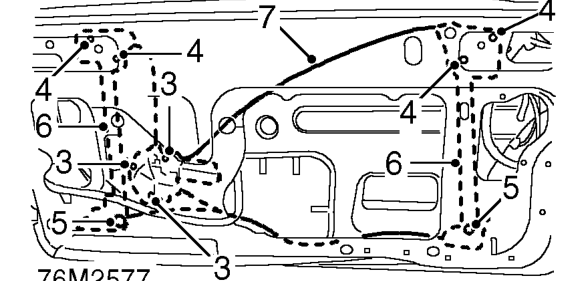

  1. Remove 3 nuts securing regulator motor.
  2. Remove 4 nuts securing top of cable guides.
  3. Remove 2 nuts securing pre-load adjusters.
  4. Release regulator from door.
  5. Remove regulator from door.

Refit

  1. Position regulator to door and unclip motor transit package from rail.
  2. Connect harness clip and align regulator to door.
  3. Fit pre-load adjusters to cable guides and tighten nuts.
  4. Fit and tighten nuts to top of cable guides.
  5. Fit and tighten nuts to regulator motor.
  6. Connect multiplug to regulator motor.
  7. Fit rear screen. See this section.
