Latch - front door - 5 door

LATCH - FRONT DOOR - 5 DOOR

Service repair no - 76.37.12

Remove

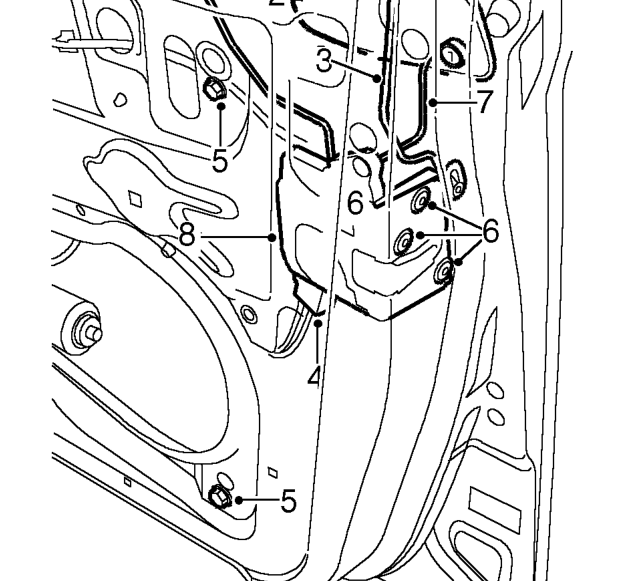

1. Remove water shedder from front door. See this section.

2. Remove sill button lock rod from latch.
3. Release control rod from exterior handle.
4. Disconnect multiplug from latch.
5. Remove 2 screws securing RH glass cable guide and position guide aside.
6. Remove 3 Torx screws from latch
7. On driver’s door, release door lock barrel paddle from latch.
8. Remove latch from aperture.

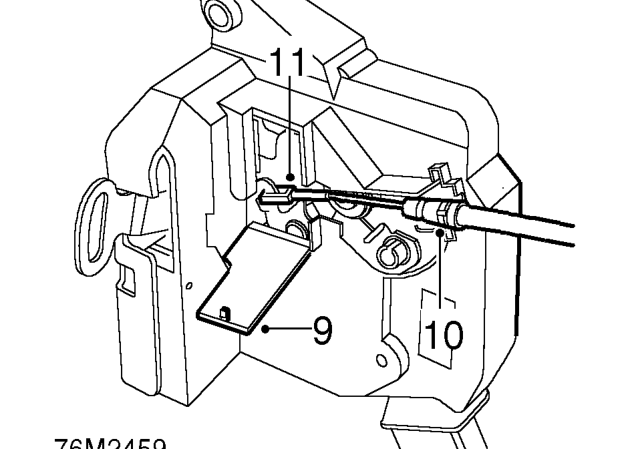

9. Open latch security flap.
10. Release interior release cable clamp from latch.
11. Disengage interior release cable from latch.

Refit

1. Secure interior release cable to latch and close latch security flap.
2. Fit interior release cable clamp to latch.
3. Position latch to door. On driver’s door, align lock barrel paddle to latch.
4. Fit and tighten Torx screws securing latch.
5. Position RH glass cable guide and tighten screws.
6. Connect multiplug to door latch.
7. Connect exterior handle control rod to latch.
8. Fit sill button lock rod to latch.
9. Check operation of door latch.
10. Fit front door water shedder. See this section.
