SCREEN - REAR

Service repair no - 76.31.20

Remove

  1. Remove tail door water shedder. See this section.
Screen - rear – Remove tail door water shedder. See this section.

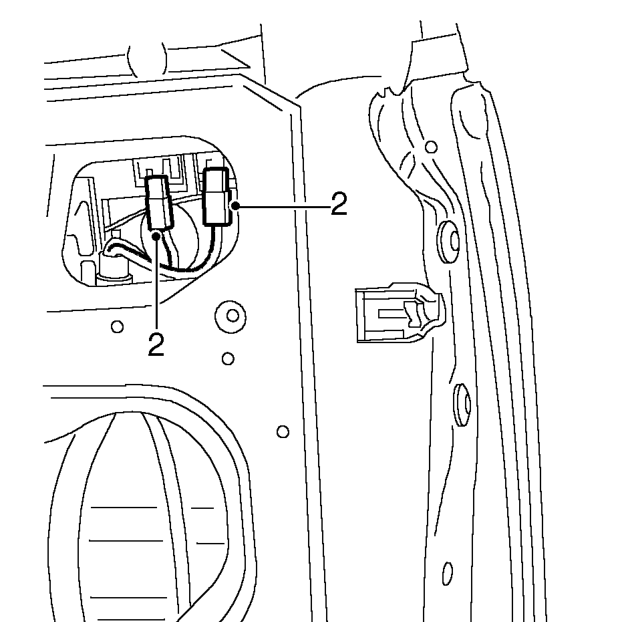

  1. Disconnect 2 Lucars from heater element.
Screen - rear – Disconnect 2 Lucars from heater element.
  1. Lower screen to access clamp bolts.

CAUTION: Remove screen carefully to avoid damaging element connections.

  1. Loosen both clamp bolts, release and remove rear screen.
