Finisher - side - tail door glass

Make

Land Rover

Model

Freelander Body Repair Manual

Year

1998 on

Section

Doors › Finisher - side - tail door glass

BodyFinisher - side - tail door glass

FINISHER - SIDE - TAIL DOOR GLASS

Service repair no - 76.43.81

Remove

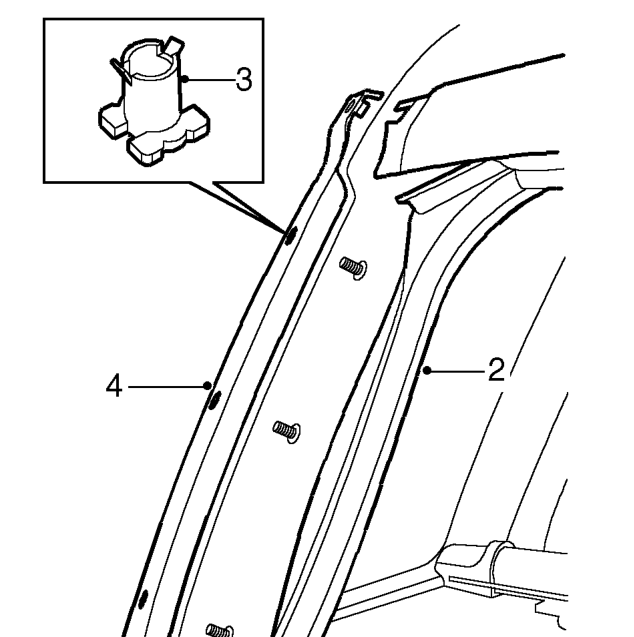

1. Open tail door.

2. Release tail door glass seal from aperture for access to side finisher fixings.
3. Using a suitable trim stud removal tool, release 3 side finisher fixings from studs on body.
4. Remove side finisher from upper fixing.
5. Remove and discard fixings from finisher.

Refit

1. Fit NEW fixings to finisher.
2. Fit door glass seal to flange.
3. Fit finisher and secure fixings.

05 Body & interior
