L322 Range Rover Service Procedures
BRAKES
REPAIRS
70-11
Refit
1. Clean reservoir and master cylinder mating
faces.
2. Fit seals.
3. Fit brake master cylinder.
4. Connect pre-charge pump feed hose and
secure with clip.
5. Secure harness to clip.
6. Connect multiplug to low fluid level sensor.
7. Bleed brakes using TestBook/T4.

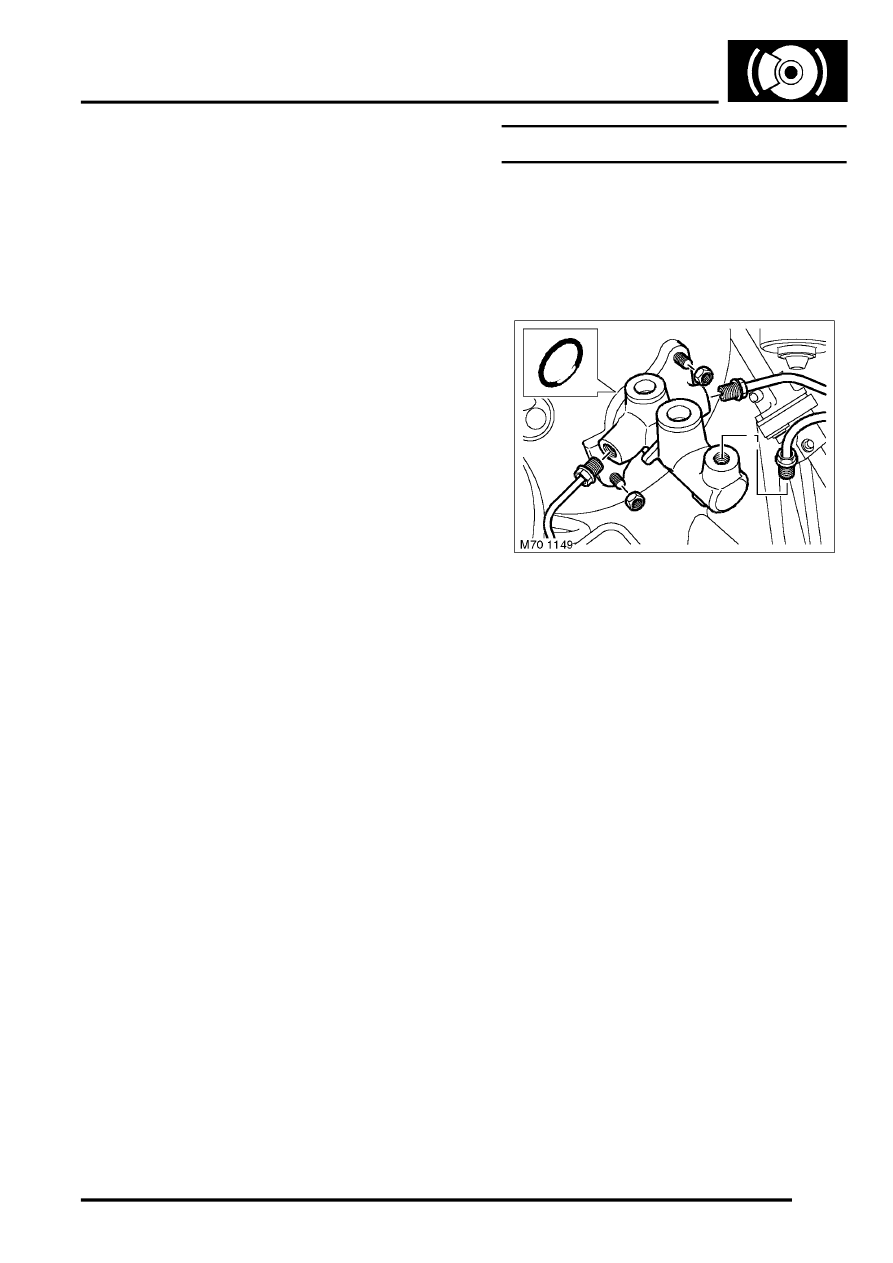

Cylinder - master - tandem
$% 70.30.08
Remove
1. Remove fluid reservoir.
2. Disconnect brake pipes.
CAUTION: Always fit plugs to open
connections to prevent contamination.
3. Remove and discard 2 nuts securing master
cylinder to servo, remove master cylinder.
4. Remove and discard sealing ring.
Refit
1. Clean master cylinder and servo mating
surfaces.
2. Fit new sealing ring to master cylinder.
3. Align push rod and position master cylinder to
servo.
4. Fit new nuts securing brake master cylinder
and tighten to 26 Nm (19 lbf.ft).
5. Clean brake pipe unions.
6. Connect brake pipes to master cylinder and
tighten unions to 14 Nm (10 lbf.ft).
7. Fit fluid reservoir.
