L322 Range Rover Service Procedures
BRAKES
70-12
REPAIRS
Pedal box
$% 70.35.03
Remove
1. Remove closing panel.
Closing panel - passenger side.
2. Remove shroud.

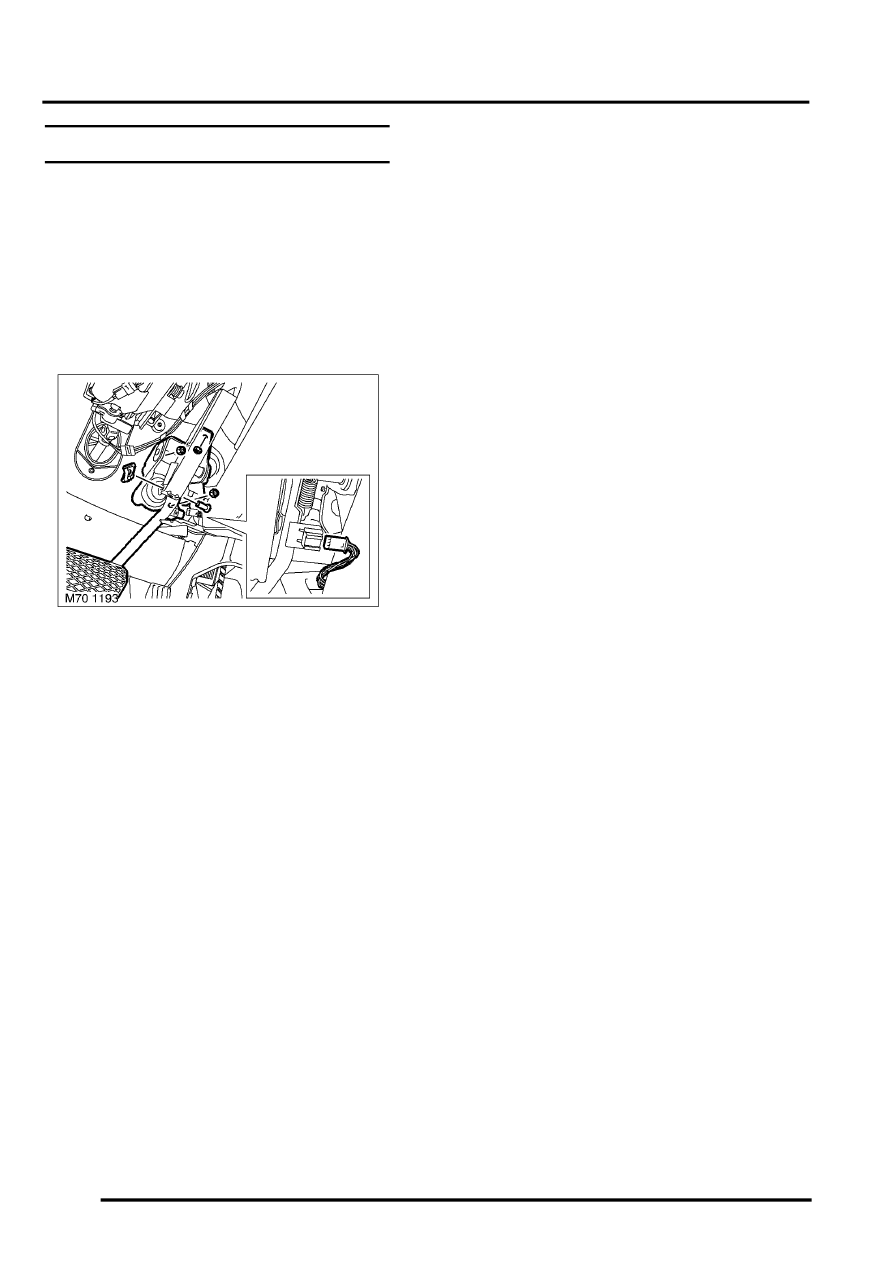

3. Disconnect brake sensor multiplug from pedal
box.
4. Remove clip and clevis pin securing brake
servo push rod to brake pedal.
5. Remove and discard 3 nuts securing pedal box
to bulkhead.
6. Release and withdraw pedal box.
NOTE: Do not carry out further dismantling if
component is removed for access only.
7. Release and remove brake sensor from holder.
8. Remove holder from pedal bracket.
9. Remove pedal return spring.
10. Remove 2 nuts and bolts securing return spring
bracket to pedal box. Remove bracket.
Refit
1. Position return spring bracket to pedal box, fit
nuts, bolts and tighten to 10 Nm (7 lbf.ft).
2. Fit return spring and sensor holder to pedal
bracket.
3. Position pedal box to bulkhead, fit new nuts and
tighten to 26 Nm (19 lbf.ft).
CAUTION: Nuts securing brake servo to
pedal bracket must be re-torqued after 30
minutes have elapsed.
4. Position sensor, connect multiplug and secure
to holder.
5. Align push rod, fit clevis pin and secure with
clip.
6. With brake pedal released, ensure sensor is in
contact with operating tang on brake pedal.
7. Fit shroud.
8. Fit closing panel.
