L322 Range Rover Service Procedures
BRAKES
70-26
REPAIRS
Refit
1. Clean ABS sensor, smear sensor with an anti-
seize grease and fit sensor to hub.
LUBRICANTS AND SEALANTS,
Lubrication.
2. Fit Allen screw securing ABS sensor and
tighten to 8 Nm (6 lbf.ft).
3. Secure sensor lead to suspension arm and
suspension turret then connect and secure
multiplug. Close cover on multiplug housing.
4. Locate wheel arch liner and secure with
screws.
5. Fit road wheel and tighten nuts to 140 Nm (103
lbf.ft).
6. Remove stand and lower vehicle.
7. To ensure correct operation, the ABS system
MUST be tested using TestBook/T4.

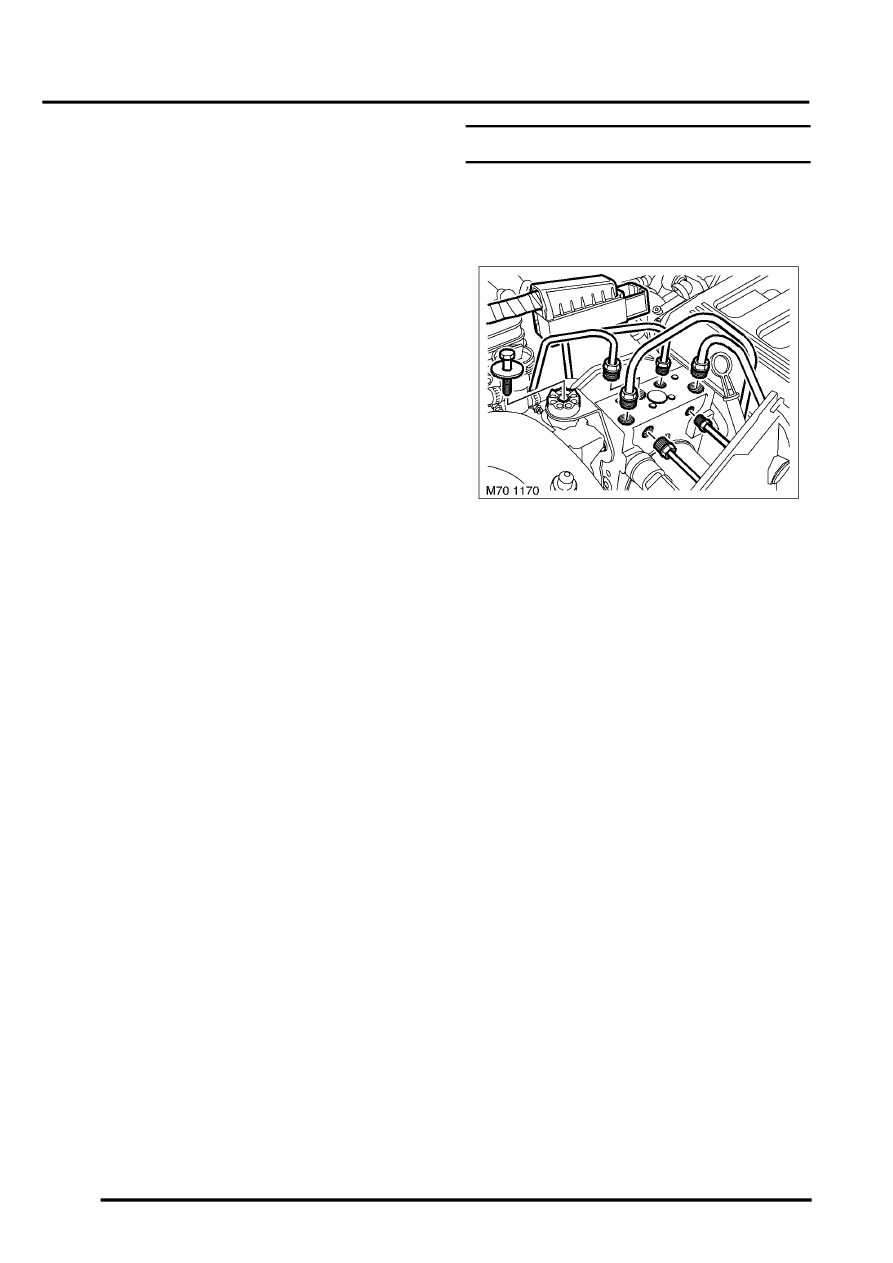

ABS Modulator unit
$% 70.65.49
Remove
1. Release catch and disconnect ABS modulator
multiplug.
2. Disconnect multiplug from sensor.
3. Position cloth under modulator to absorb fluid
spillage.
CAUTION: Brake fluid will damage paint
finished surfaces. If spilled, immediately
remove fluid and clean area with water.
Ensure water does not enter modulator
ports.
4. Noting their fitted positions, disconnect 6 brake
pipe unions from modulator.
CAUTION: Before disconnecting or
removing components, ensure the
immediate area around joint faces and
connections are clean. Plug open
connections to prevent contamination.
5. Remove bolt securing ABS modulator to
mounting bracket.
6. Release and remove ABS modulator from
mounting bracket.
NOTE: Do not carry out further dismantling if
component is removed for access only.
7. Remove 2 bolts securing mounting bracket to
modulator and remove bracket.
