L322 Range Rover Service Procedures
DRIVESHAFTS
47-12
REPAIRS

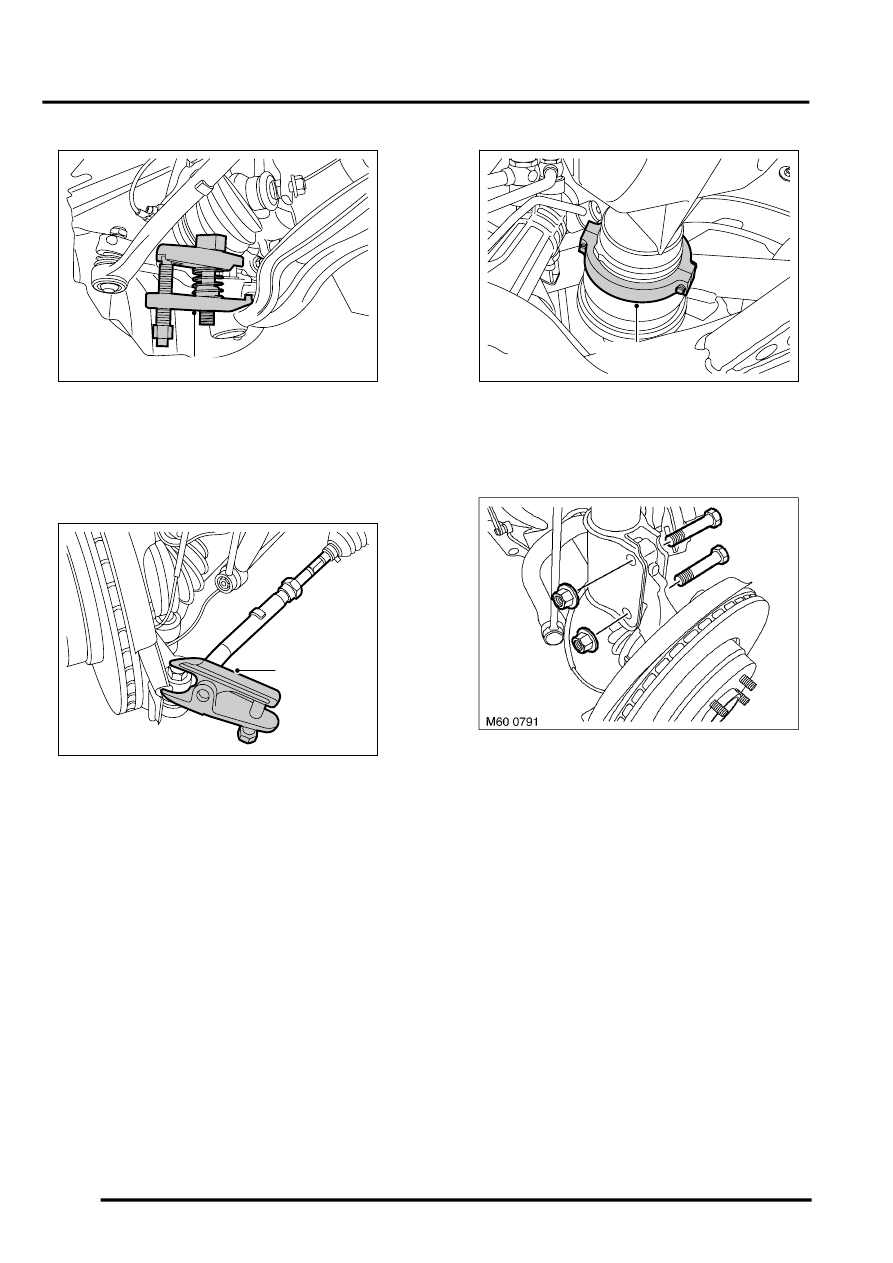

13. Using LRT-54-027 release tie rod from ball joint
Caution: ensure ball joint seal is not
damaged. A damaged seal will lead to
premature failure of the joint.
14. Remove and discard nut securing track rod ball
joint to steering arm.
15. Fit an m14 nut to ball pin, flush with end of pin.
16. Using LRT-57-036 separate ball pin from
steering arm. Remove m14 nut and release ball
pin from steering arm.
Caution: ensure ball joint seal is not
damaged. A damaged seal will lead to
premature failure of the joint.
17. Position container to collect oil spillage.
18. Fit LRT-54-026 to drive shaft inboard joint.
19. Using levers, release drive shaft from
differential.
20. Remove 2 nuts and bolts securing hub to
damper.
21. With assistance, remove hub and drive shaft
assembly.
22. Remove and discard shaft retaining clip.
23. Carefully remove and discard oil seal.
Refit
1. Clean oil seal register.
M60 0789
LRT -54-027
M47 0418
LRT-57-036
M47 0414
LRT-54-026
