Range Rover V8 Engine Overhaul: Variable Camshaft Unit & Control
ENGINE - V8
OVERHAUL 12-2-97

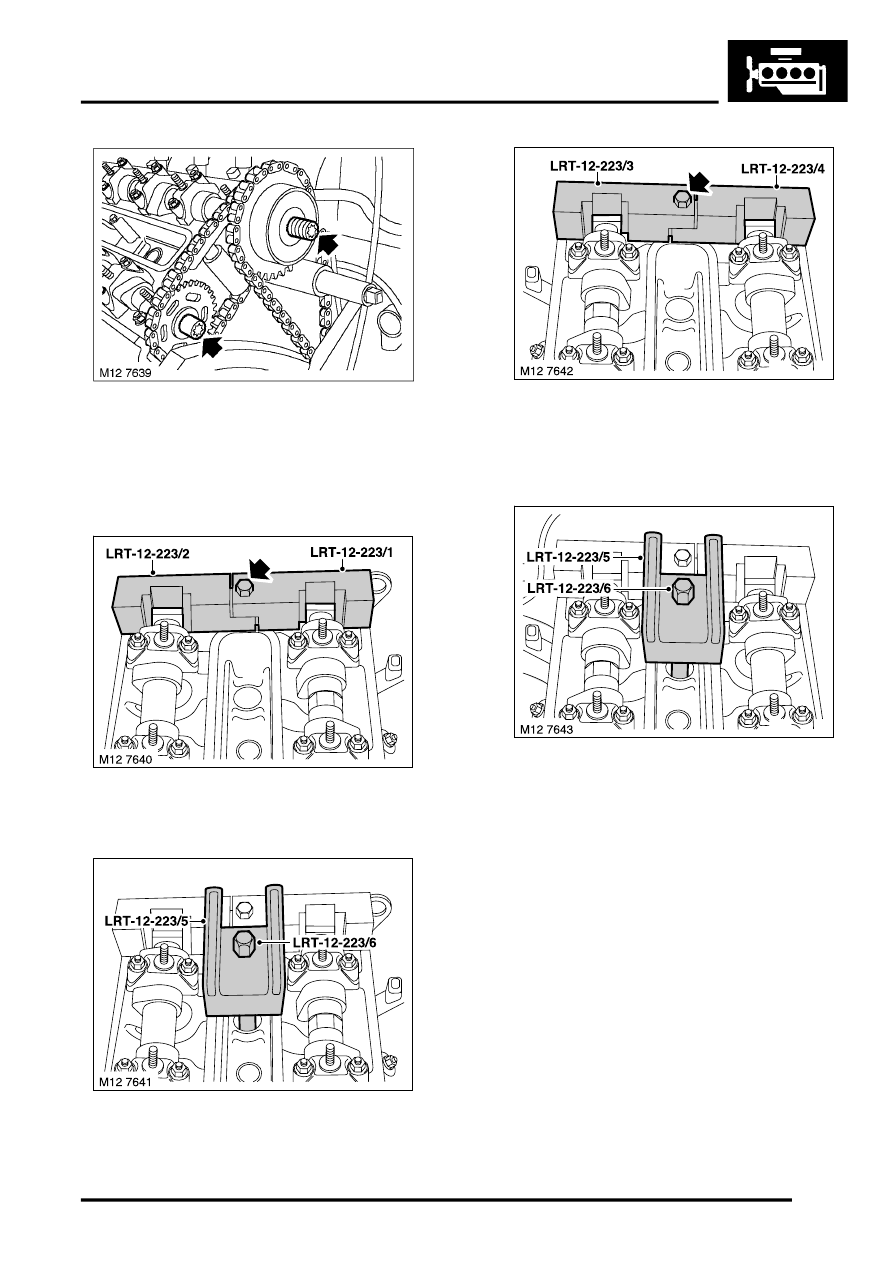

4. Loosen 2 Torx bolts securing RH VCC unit and
RH exhaust camshaft sprocket 1/2 a turn.
NOTE: Thread is left handed.
5. Loosen bolt securing LRT-12-223/2 to LRT-12-
223/1.
6. Fit LRT-12-223/2 and LRT-12-223/1 to rear of
RH camshafts and tighten bolt securing tools.
7. Fit LRT-12-223/5, LRT-12-223/6 to RH cylinder
head and tighten LRT-12-223/6 into spark plug
thread.
8. Loosen bolt securing LRT-12-223/4 to LRT-12-
223/3.
9. Fit LRT-12-223/4 and LRT-12-223/3 to rear of
LH camshafts and tighten bolt securing tools.
10. Fit LRT-12-223/5, LRT-12-223/6 to LH cylinder
head and tighten LRT-12-223/6 into spark plug
thread.
