ENGINE - V8

12-2-100 OVERHAUL

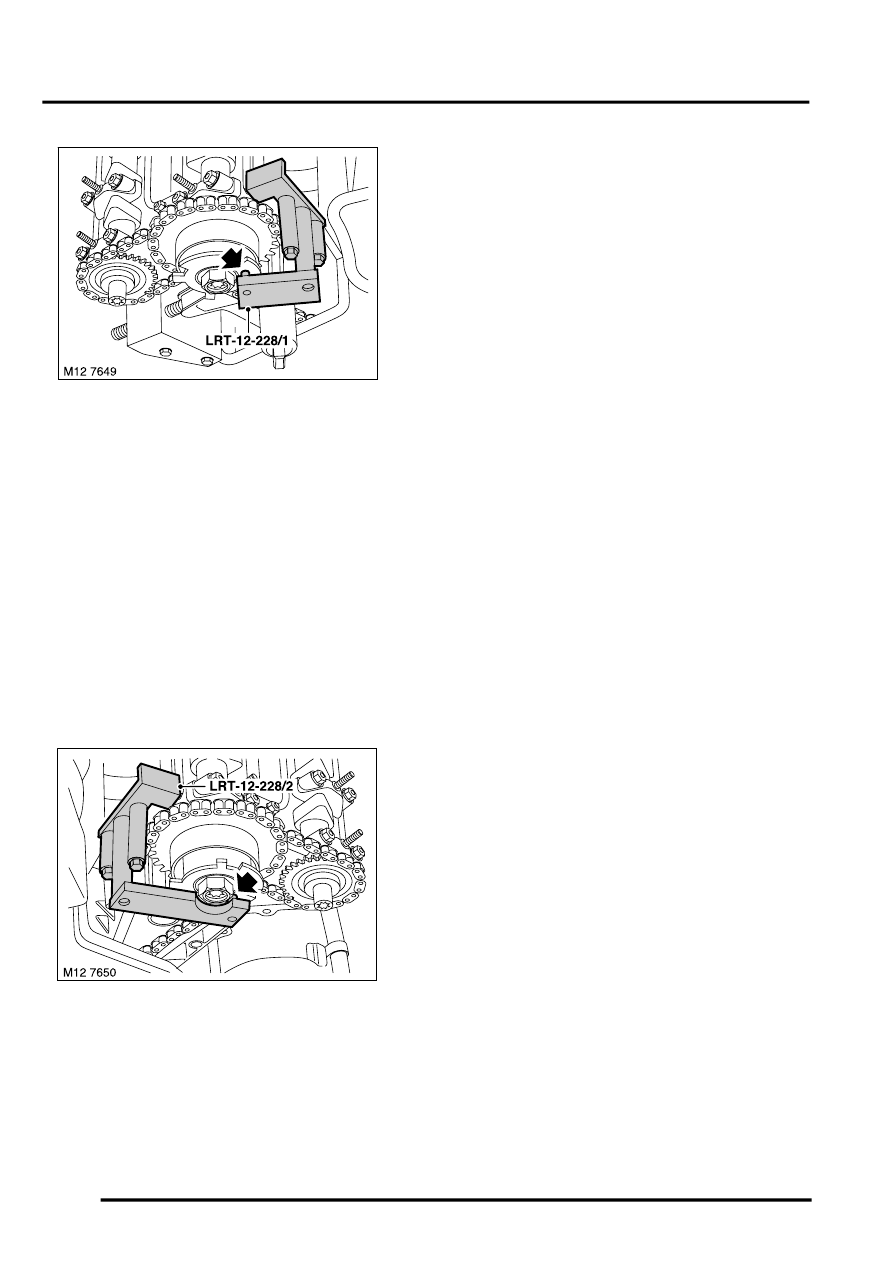

18. Position LRT-12-228/1 locating dowel to RH

CMP sensor ring, fit 2 bolts securing tool to RH
cylinder head and tighten.

NOTE: To ensure correct CMP sensor ring
adjustment, make sure the tool  is aligned flush
with the cylinder head and lower timing gear
cover before tightening the tool securing bolts.

19. Tighten nut securing CMP sensor ring to 40 Nm

(30 lbf.ft) and remove LRT-12-228/1 from RH
cylinder head.

NOTE: Thread is left handed.

20. Fit LH CMP sensor ring, fit and hand tighten

securing nut.

NOTE: Thread is left handed.

21. Position LRT-12-228/2 locating dowel to LH

CMP sensor ring, fit 2 bolts securing tool to LH
cylinder head and tighten.

NOTE: To ensure correct CMP sensor ring
adjustment, make sure the tool  is aligned flush
with the cylinder head and lower timing gear
cover before tightening the tool securing bolts.

22. Tighten nut securing CMP sensor ring to 40 Nm

(30 lbf.ft) and remove LRT-12-228/2 from LH
cylinder head.

NOTE: Thread is left handed.

23. Remove LRT-12-223/5LRT-12-223/6LRT-

12-223/2 and LRT-12-223/1 from RH cylinder
head camshafts.

24. Remove LRT-12-223/6LRT-12-223/5LRT-

12-223/3 and LRT-12-223/4 from LH cylinder
head camshafts.

25. Loosen LRT-12-222, remove 2 bolts securing

LRT-12-221 to RH cylinder head and remove
LRT-12-221.

Refit

1. Fit timing gear upper covers.



 +

 Engine - V8, OVERHAUL, Cover -

timing gear - upper.

2. Remove LRT-12-227 from timing tool access

hole.

3. Fit 4 camshaft oil lines to LH and RH cylinder

heads, fit and tighten 20 securing bolts.

4. Fit engine lifting eye to rear of RH cylinder

head, fit and tighten 2 bolts securing engine
lifting eye.

5. Fit and tighten 8 spark plugs to 23 Nm (17

lbf.ft).

6. Fit camshaft cover gaskets.



 +

 Engine - V8, OVERHAUL, Gasket -

covers - camshaft.
