ENGINE - V8

REPAIRS 12-2-49

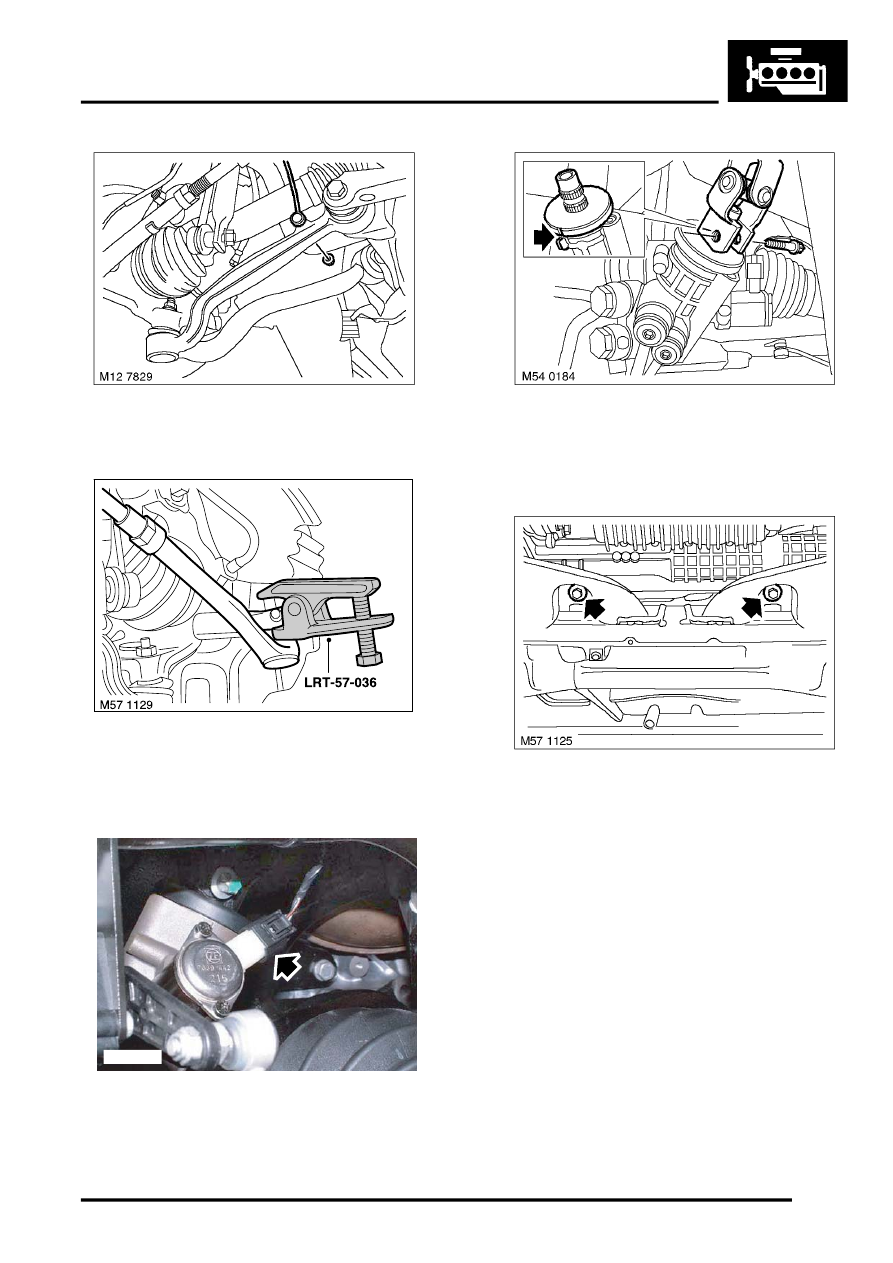

15. Remove nut and disconnect link from LH front

suspension height sensor.

16. Remove nuts securing RH and LH track rod

end ball joints to steering arms. Discard nuts.

17. Using LRT-57-036 release track rod ends from

steering arms.

18. Disconnect multiplug from PAS rack pinion

sensor.

19. Note fitted position of intermediate steering

column. Remove Torx bolt from intermediate
steering column clamp and disconnect column
from PAS rack.

20. Remove 2 Torx bolts and 2 nuts securing PAS

rack, discard nuts and bolts.

21. Release PAS rack from front sub-frame and

position rack forward for access.

22. Connect chain to engine lifting bracket and

raise engine sufficiently only to clear mounting.

CAUTION: To prevent damage to the
radiator, guide the fan cowl clear of the
radiator as it is raised with the engine.

M57 1126
